1551HRBK

SKU: 1551HRBK

BRAND: Hammond

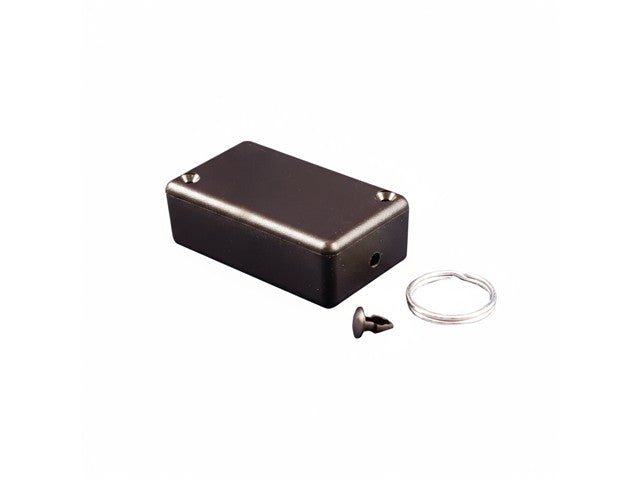

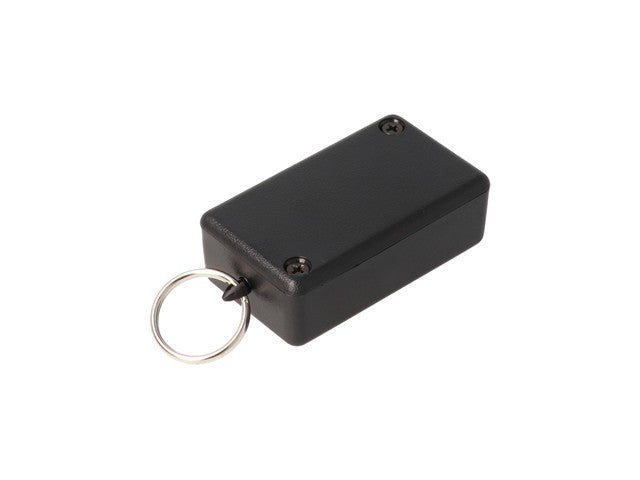

ABS Enclosure 60x35x20mm Black with Keyring

ABS Enclosure Black

Feature(s)

  • Ideally suited for mounting small printed circuit boards or used as potting boxes.
  • Molded in a choice of black, gray, or translucent blue general purpose ABS plastic.
  • Satin texture finish.

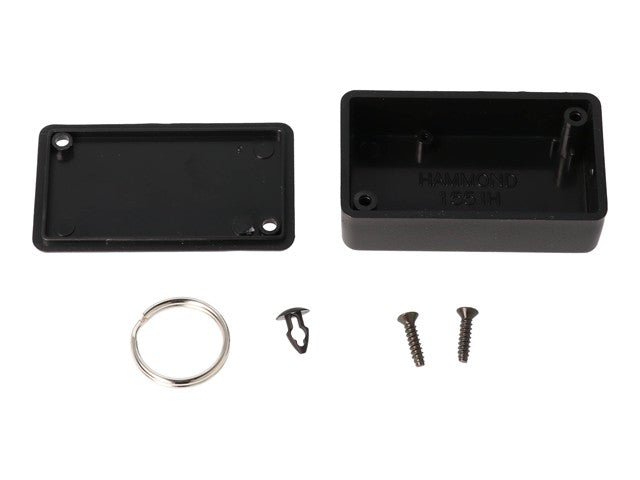

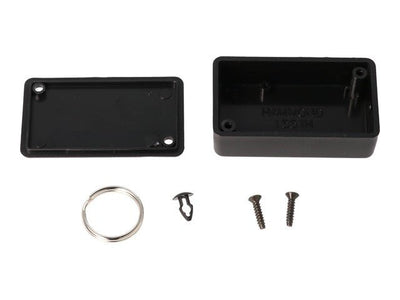

  • Complete with lid and two self tapping screws.
  • This series is also available with flanged lids.
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures).
  • 2 P.C. board standoffs molded into interior.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Some sizes are available with a keyring kit.
  • Models with key ring kit are predrilled in the narrow side.

Specifications

Size L x W x H 2.36 in x 1.38 in x 0.79 in
(60 mm x 35 mm x 20 mm)
Shipping Weight 0.05 lbs (0.02 kg)
Packaging Type bag
Material ABS Plastic
Color Black
Flame Rating UL94 HB
IP Rating IP54
Product Category Enclosures
Type Miniature, key ring
Max. P.C. Board Length (mm) 29
Max. P.C. Board Width (mm) 54

Downloads

Additional Information

Device Enclosure
Type ABS | Black
