1551KRBK

SKU: 1551KRBK

BRAND: Hammond

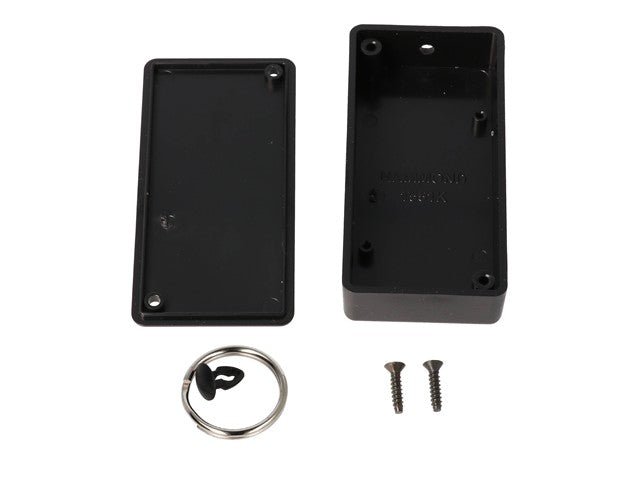

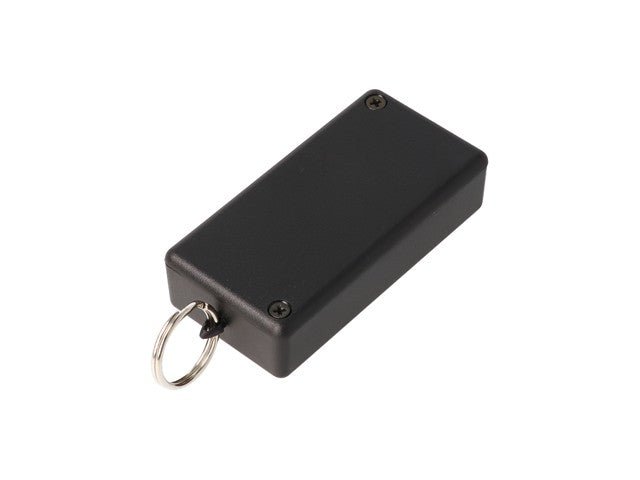

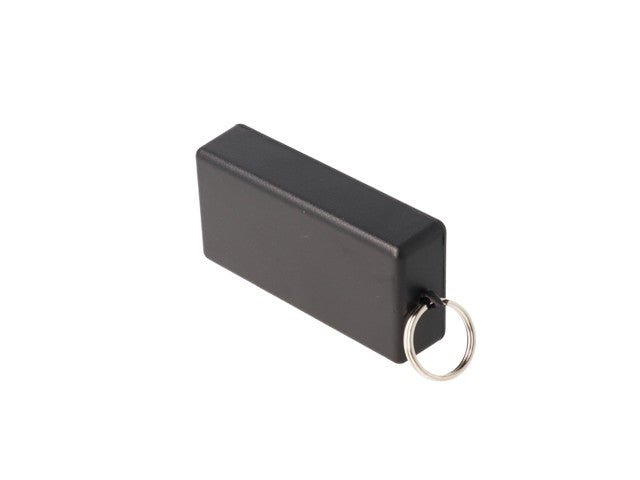

ABS Encloure 80 x 40 x 20 mm (With Lid) Black With Keyring

Features

  • Ideally suited for mounting small printed circuit boards or used as potting boxes
  • Molded in a choice of black, gray, or translucent blue general purpose ABS plastic
  • Satin texture finish
  • Complete with lid and two self tapping screws
  • This series is also available with flanged lids
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures)
  • 2 P.C. board standoffs molded into interior
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Some sizes are available with a keyring kit
  • Models with key ring kit are predrilled in the narrow side

Specifications

Product Type Miniature Hand Held Enclosure with Key Ring
Series 1551
Body Material ABS Plastic
External Dimensions 80 x 40 x 20 mm (With Lid)
External Length 80 mm
External Width 40 mm
External Height 20 mm (With Lid)
Internal Dimensions 74.73 x 34.73 x 16 mm
Internal Length 74.73 mm
Internal Width 34.73 mm
Internal Height 16 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94-HB
Protection Features Protection against Access of Dust and Splashing Water
