1551MBK

SKU: 1551MBK

BRAND: Hammond

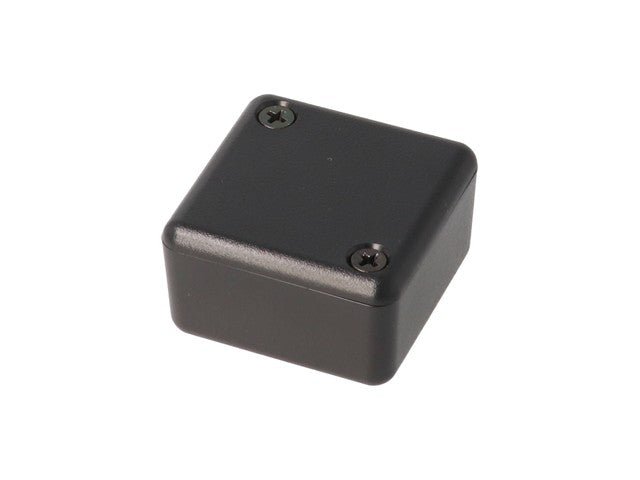

General Purpose IP54 Black ABS Plastic Enclosure in 35 mm x 35 mm x 20 mm size

ABS Plastic Enclosure

Feature(s)

  • Ideally suited for mounting small printed circuit boards or used as potting boxes.
  • Satin Texture Finish.

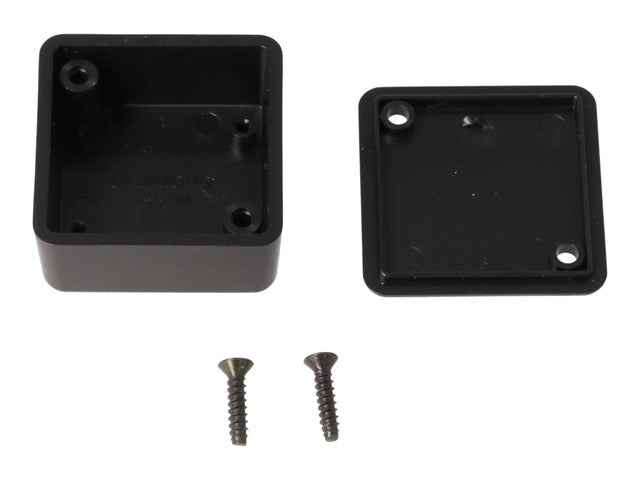

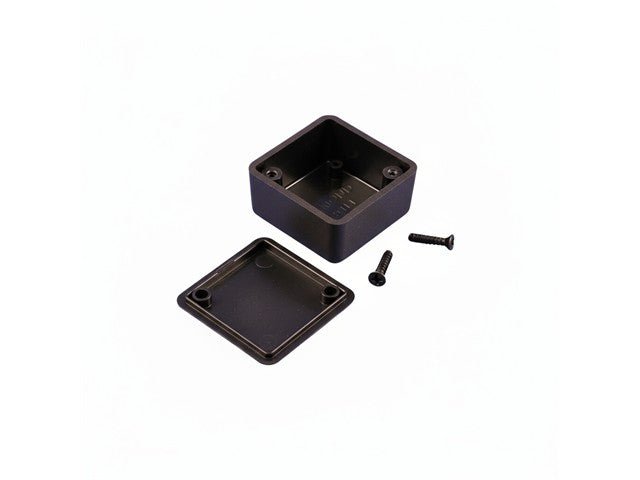

  • Complete with Lid and Two Self Tapping Screws.
  • Screws are Colour Matched To Enclosure.
  • 2 P.C. Board Standoffs Molded Into Interior.
  • Lap Joint Construction Provides Protection Against Access of Dust and Splashing Water.
  • Designed to meet IP54

Specifications

Size L x W x H 1.38 in x 1.38 in x 0.79 in
(35 mm x 35 mm x 20 mm)
Shipping Weight 0.03 lbs (0.01 kg)
Packaging Type bag
Material ABS Plastic
Color Black
Flame Rating UL94 HB
IP Rating IP54
Product Category Enclosures
Type Miniature, general purpose

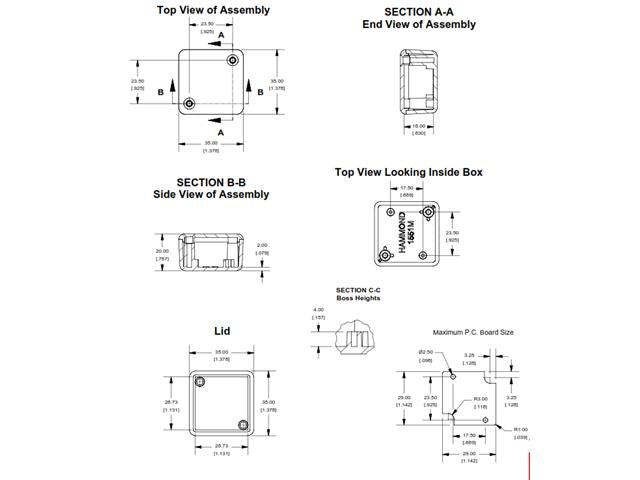

Max. P.C. Board Length (mm) 29
Max. P.C. Board Width (mm) 29

Downloads

Additional Information

Device Enclosure
Type Plastic | Hand-Held
