1551MFLBK

SKU: 1551MFLBK

BRAND: Hammond

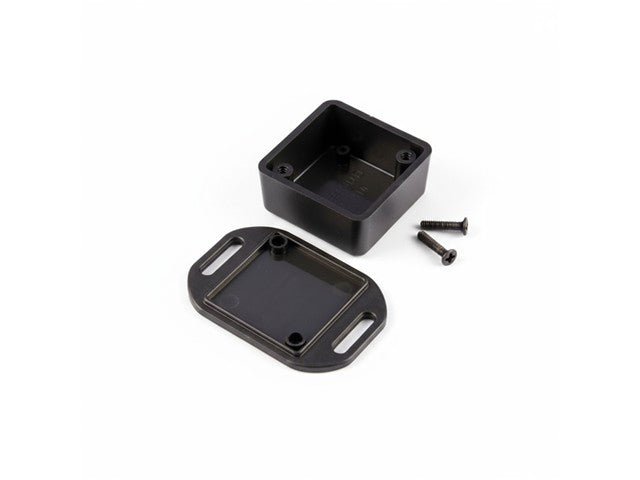

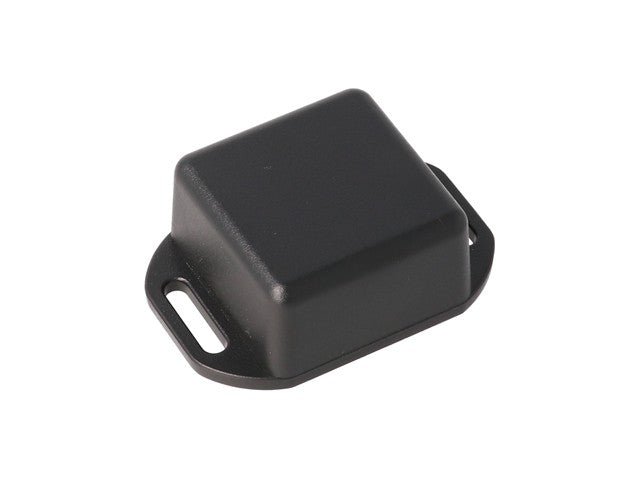

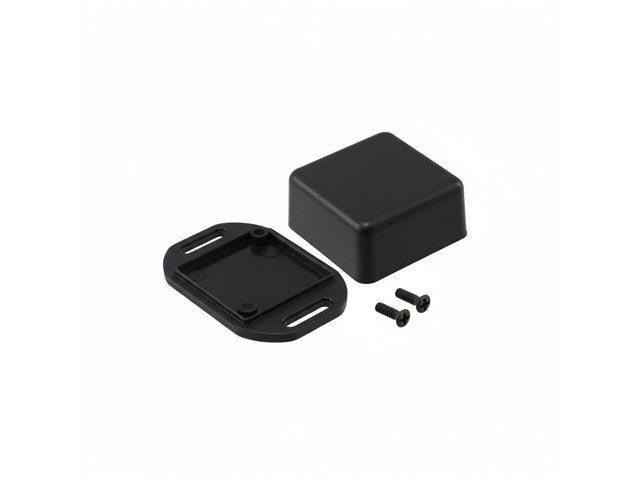

ABS Enclosure 35 mm x 35 mm x 20 mm Black Flanged Lid

ABS Enclosure Black Flanged Lid

Feature(s)

  • Ideally suited for mounting small printed circuit boards or use as potting boxes.
  • Molded in choice of black, gray, or translucent blue general purpose ABS plastic with satin texture.
  • All sizes also available with an integrated flange. Flanged sizes available in black or gray only.
  • Two or four self-tapping screws included, depending on size.
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black and blue enclosures).
  • Two or four PC board standoffs molded into interior, depending on size.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Some sizes are available with a keyring kit.
  • Models with key ring kit are predrilled in the narrow side.

Specifications

Size L x W x H 1.38 in x 1.38 in x 0.79 in
(35 mm x 35 mm x 20 mm)
Shipping Weight 0.04 lbs (0.02 kg)
Packaging Type bag
Material ABS Plastic
Color Black
Flame Rating UL94 HB
IP Rating IP54
Product Category Enclosures
Type Miniature, flanged
Max. P.C. Board Length (mm) 29
Max. P.C. Board Width (mm) 29

Downloads

Additional Information

Device Enclosure
Type ABS | Black | Flanged Lid
