1551NGY

SKU: 1551NGY

BRAND: Hammond

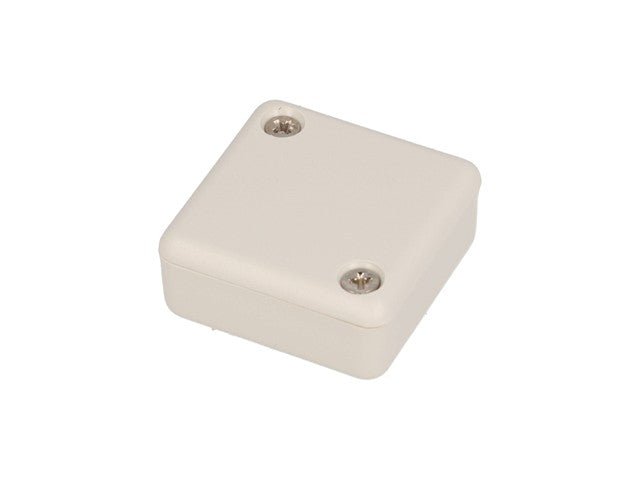

Miniature Hand Held Enclosure • ABS Plastic • 35mm x 35mm x 15mm • Grey

Feature(s)

  • Ideally suited for mounting small printed circuit boards or used as potting boxes.
  • Molded in a choice of black or grey - general purpose ABS plastic.
  • Satin texture finish.

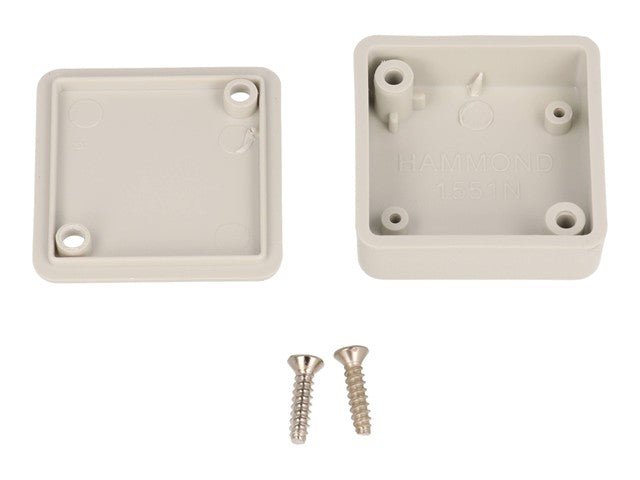

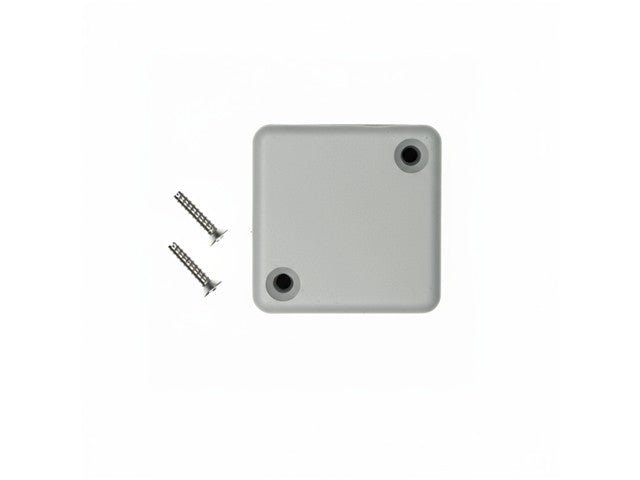

  • Complete with lid and two self tapping screws.
  • This series is also available with flanged lids.
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures).
  • 2 P.C. board standoffs molded into interior.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.

Specifications

Size L x W x H 1.38 in x 1.38 in x 0.59 in
(35 mm x 35 mm x 15 mm)
Shipping Weight 0.04 lbs (0.02 kg)
UNSPSC 39121301
UPC 623980583150
Packaging Type bag
Material ABS Plastic
Color Light Gray
Flame Rating UL94 HB
IP Rating IP54
Product Category Enclosures
Type Miniature, general purpose
Max. P.C. Board Length (mm) 29
Max. P.C. Board Width (mm) 29

Downloads

Additional Information

Group Plastic Enclosure
Model 1551NGY
Device Hand Held
Type Miniature
