1551QGY

SKU: 1551QGY

BRAND: Hammond

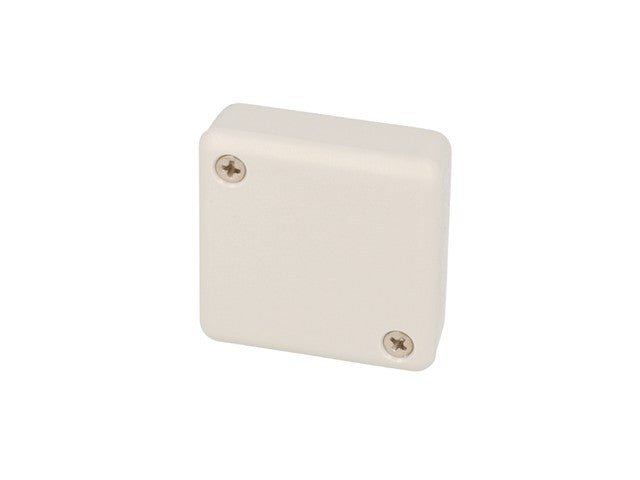

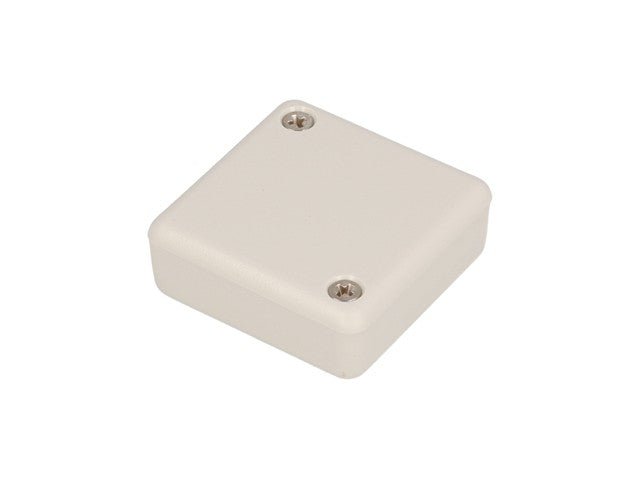

ABS Enclosure 40 x 40 x 15 mm (With Lid) Grey

Features

  • Ideally suited for mounting small printed circuit boards or used as potting boxes
  • Molded in a choice of black, gray, or translucent blue general purpose ABS plastic
  • Satin texture finish

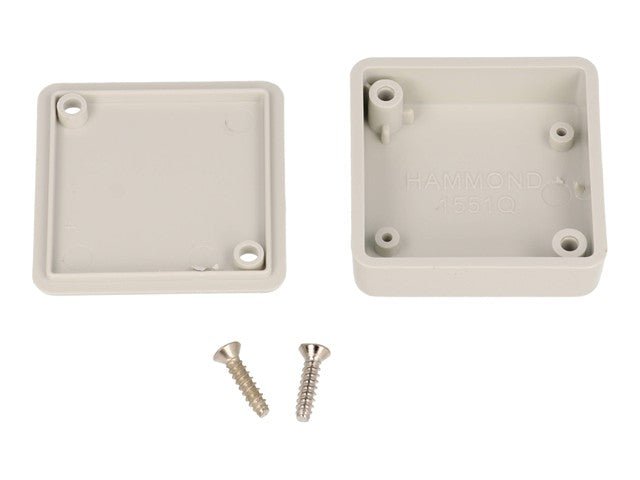

  • Complete with lid and two self tapping screws
  • This series is also available with flanged lids
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures)
  • 2 P.C. board standoffs molded into interior
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Some sizes are available with a keyring kit
  • Models with key ring kit are predrilled in the narrow side

Specifications

Product Type Miniature Hand Held Enclosure
Series 1551
Body Material ABS Plastic
External Dimensions 40 x 40 x 15 mm (With Lid)
External Length 40 mm
External Width 40 mm
External Height 15 mm (With Lid)
Internal Dimensions 35.12 x 35.12 x 11 mm
Internal Length 35.12 mm
Internal Width 35.12 mm
Internal Height 11 mm
Colour Grey
IP Rating IP54
Lid Colour Grey
Flame Rating UL94-HB
Protection Features Protection against Access of Dust and Splashing Water
