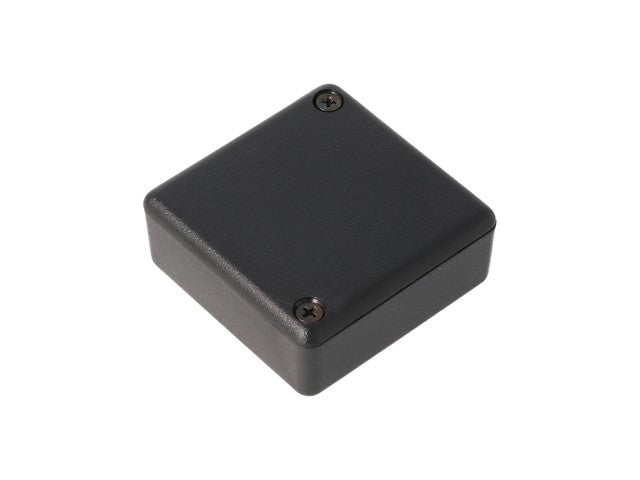

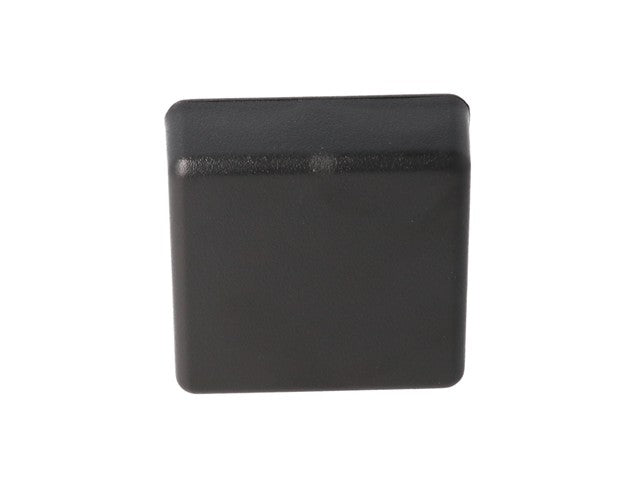

1551RBK

SKU: 1551RBK

BRAND: Hammond


ABS Enclosure 50 x 50 x 20mm (With Lid) IP54 Black

Features

  • Ideally suited for mounting small printed circuit boards or used as potting boxes
  • Molded in a choice of black, gray, or translucent blue general purpose ABS plastic
  • Satin texture finish

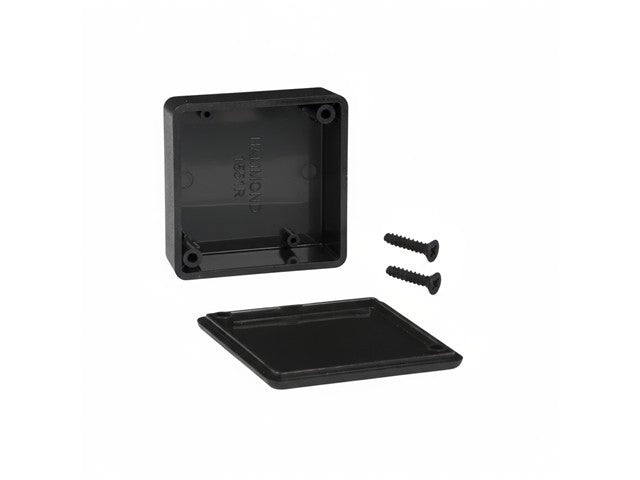

  • Complete with lid and two self tapping screws
  • This series is also available with flanged lids
  • Screws are color matched to enclosure (nickel plated screws with grey enclosures and black plated with black enclosures)
  • 2 P.C. board standoffs molded into interior
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Some sizes are available with a keyring kit
  • Models with key ring kit are predrilled in the narrow side

Specifications

Product Type Miniature Hand Held Enclosure
Series 1551
Body Material ABS Plastic
External Dimensions 50 x 50 x 20 mm (With Lid)
External Length 50 mm
External Width 50 mm
External Height 20 mm (With Lid)
Internal Dimensions 44.72 x 44.72 x 15.98 mm
Internal Length 44.72 mm
Internal Width 44.72 mm
Internal Height 15.98 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94-HB
Protection Features Protection against Access of Dust and Splashing Water
