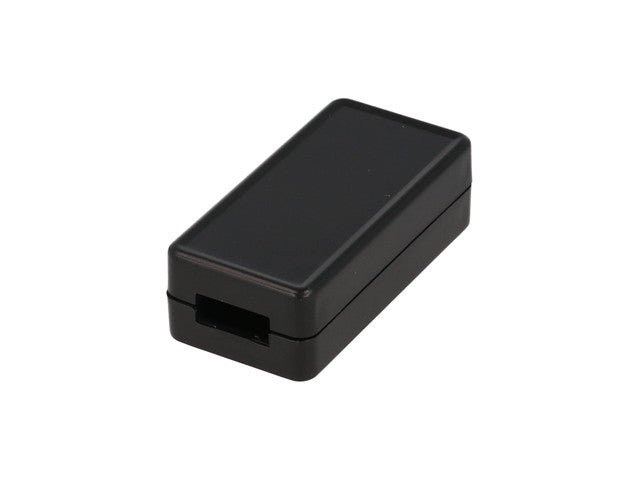

Enclosure ABS Miniature Plastic 50 x 25 x 15.5 mm For USB Black (RAL 9011) IP54
Features
- Ideally suited for dongles and/or mounting small printed circuit boards with USB connectors
- Molded in ABS plastic (material has a UL94-HB rating)
- Choice of three (3) lengths in five (5) colors. Stocked in black, grey. translucent clear, translucent smoke and translucent red
- Satin texture finish
- Cover is recessed for easy label installation

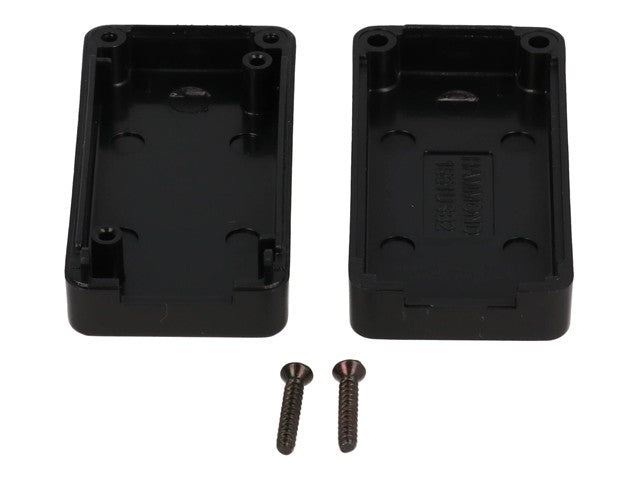

- Complete with lid and two self tapping screws (plated for grey & clear, black for all other colors)
- Two (2) or four (4) P.C. board standoffs molded into interior depending on enclosure size (see drawings for details)
- Designed to meet IP54
- USB connector is not included
Specifications
Product Type |
Miniature USB Enclosure |
Series |
1551 |
Body Material |
ABS Plastic |
External Dimensions |
50 x 25 x 15.5 mm |
External Length |
50 mm |
External Width |
25 mm |
External Height |
15.5 mm |
Internal Dimensions |
46.41 x 21.41 x 11.6 mm |
Internal Length |
46.41 mm |
Internal Width |
21.41 mm |
Internal Height |
11.6 mm |
Colour |
Black |
IP Rating |
IP54 |
Lid Colour |
Black |
Flame Rating |
UL94-HB |
