BRAND: Hammond

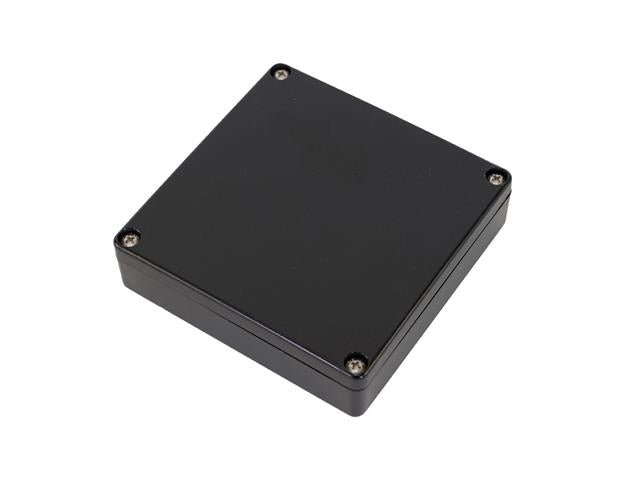

ABS Enclosure Polycarbonate Watertight 80x80x22mm Black IP68

Polycarbonate Watertight ABS Enclosure


  • Ideally suited for mounting small printed circuit boards.
  • Molded from robust polycarbonate
  • Suitable for outdoor use
  • Polycarbonate has a flame rating of UL94 V-0
  • Satin texture finish.
  • Complete with lid and (4) plastite #4 self tapping screws.
  • Available with or without integrated wall-mounting flanges.
  • P.C. board standoffs molded into interior for easy installation.
  • Includes replaceable silicone gasket to protect against ingress of water or dust.
  • Designed to meet IP68.
  • For general purpose (not water-tight) miniature enclosures


Size L x W x H 3.15 in x 3.15 in x 0.87 in
(80 mm x 80 mm x 22 mm)
Shipping Weight 0.12 lbs (0.05 kg)
Packaging Type shrink wrap
Material Polycarbonate
Color Black
Flame Rating UL94V-0
IP Rating IP68
Product Category Enclosures
Type Miniature, watertight
Max. P.C. Board Length (mm) 74.5
Max. P.C. Board Width (mm) 74.5

Additional Information

Device Enclosure
Type Polycarbonate | Watertight | ABS
