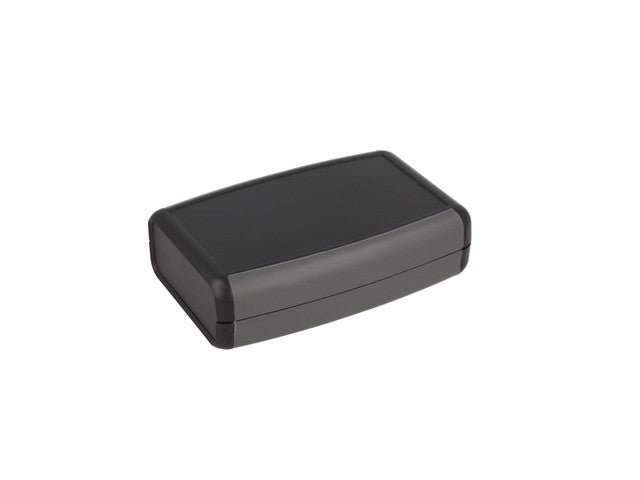

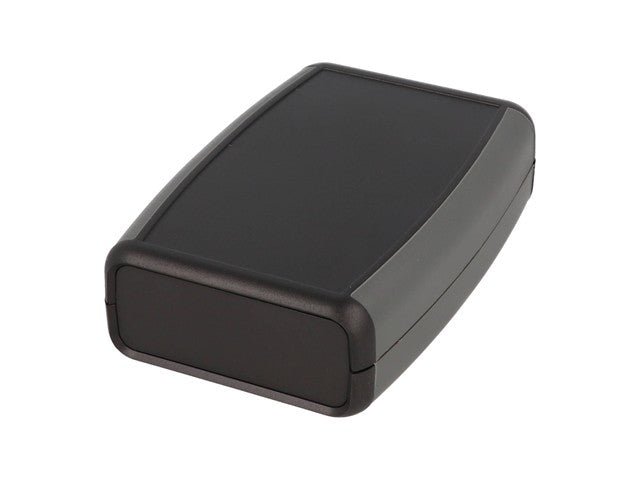

117.23 x 78.97 x 32 mm ABS Plastic Enclosure Black with Soft Side
Features
- Ergonomically designed for hand-held comfort
- Choice of five sizes and six color combinations
- Choice of two versions in the three larger sizes (ie...with or without battery door & compartment)
- Molded in general purpose ABS plastic with an overmold, soft plastic grip
- Top cover is recessed for membrane display or keypad

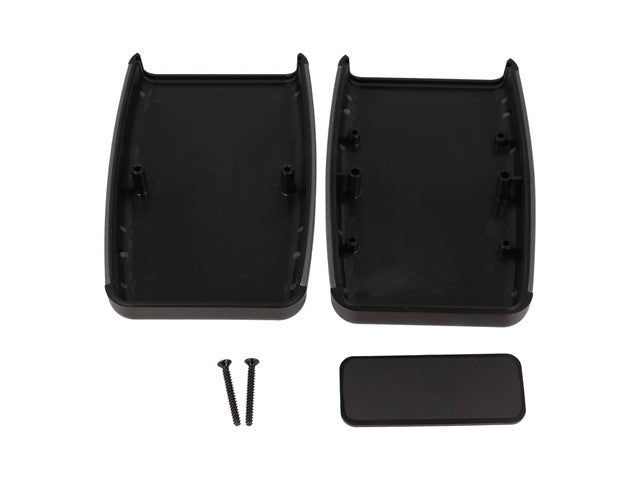

- P.C. board standoffs are molded into case (see drawings or photos for more details)
- Includes removable front panel (for easy modifications) and assembly hardware (except for smallest 1553A units)
- Battery door & compartment version includes 4 battery clips (for 2 - AA batteries) and a 9 volt (PP3) battery clip
- Gray 1553 series enclosures include nickel plated screws. All other color use black screws. Refer to product datasheets for correct part numbers
- For similar enclosures designed for water-tight applications, try series 1553W
Specifications
| Product Type |
Soft Sided Hand-Held Enclosure |
| Series |
1553 |
| Body Material |
ABS Plastic |
| External Dimensions |
117.23 x 78.97 x 32 mm |
| External Length |
117.23 mm |
| External Width |
78.97 mm |
| External Height |
32 mm |
| Internal Dimensions |
110.25 x 62.86 x 27 mm |
| Internal Length |
110.25 mm |
| Internal Width |
62.86 mm |
| Internal Height |
27 mm |
| Colour |
Black |
| IP Rating |
IP54 |
| Lid Colour |
Black |
| Flame Rating |
UL94-HB |
