1553TTBK

SKU: 1553TTBK

BRAND: Hammond

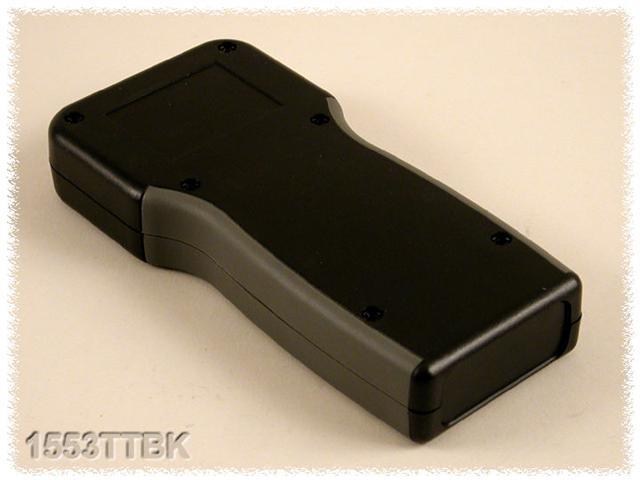

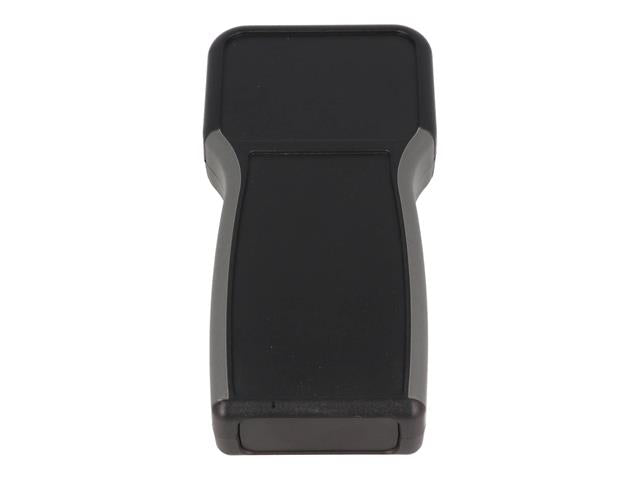

ABS Enclosure T-SHAPE with Soft Side 165 x 80+67.95 x 28 mm In Black Colour it is designed for IP54

Features

  • Ergonomically designed for a comfortable fit into the user’s hand
  • Choice of: two sizes, in two versions (with or without battery door) - in two colors (black or grey)
  • Perfect for instrument or mobile data enclosures requiring a keypad and display
  • Both the display and keyboard areas are recessed for membrane devices
  • Molded from flame retardant ABS plastic, choice of black or light gray - material carries a UL flammability rating of 94V-0
  • Handheld section of enclosure includes a dark grey overmold, soft plastic grip
  • Enclosure is assembled with M3-0.5 x 18 mm Philips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required

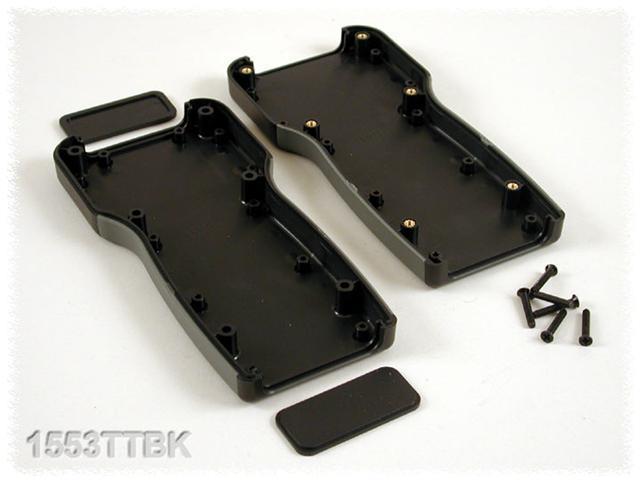

  • Integral brass bushings are factory inserted into top half of the enclosure (see photos)
  • Lap joint construction provides protection against access of dust and splashing water. Designed to meet IP54
  • P.C. board standoffs are molded into the case top & bottom halves

Specifications

Product Type Soft Sided Hand-Held T Enclosure
Series 1553T
Body Material ABS Plastic
External Dimensions 165 x 80+67.95 x 28 mm
External Length 165 mm
External Width 80+67.95 mm
External Height 28 mm
Internal Dimensions 50.95+96.31 x 67.31 x 22 mm
Internal Length 50.95+96.31 mm
Internal Width 67.31 mm
Internal Height 22 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94 V-0
Protection Features Protection against Access of Dust and Splashing Water
