BRAND: Hammond

ABS Enclosure. 117X79X25 Soft Sided Watertight IP65 Black Top Grey Sides

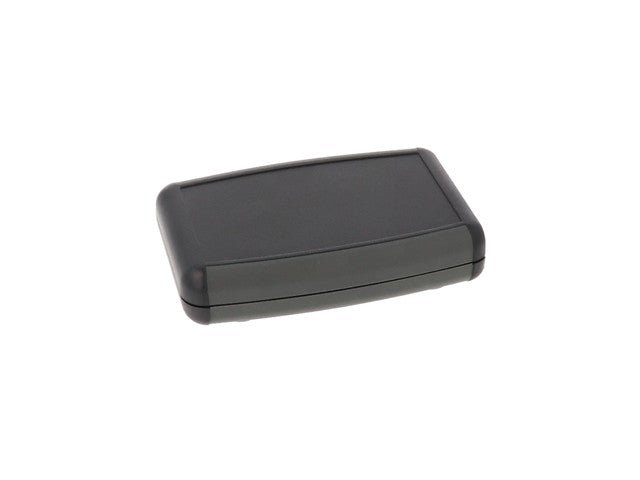

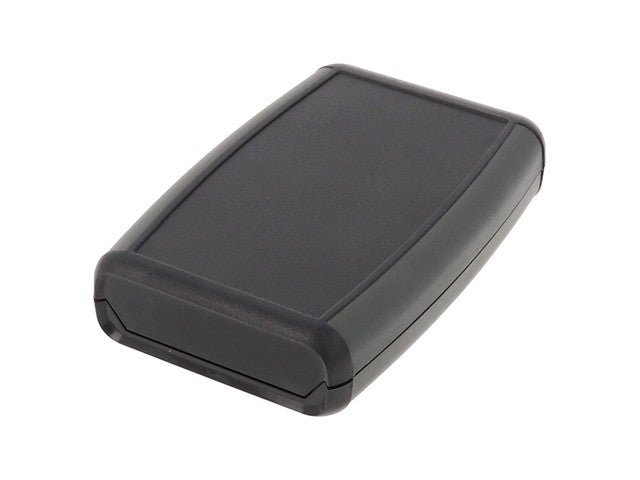

Watertight IP65 Black ABS Enclosure


  • Ergonomically designed for hand-held comfort.
  • Designed to meet IP65.
  • Uses a one piece silicone gasket (installed). Enclosure utilizes tongue & groove construction - molded into the top & bottom halves.
  • Choice of three sizes - in two colors.
  • Molded in flame retardant - ABS plastic (FRABS) - UV stabilized. With a grey overmold, soft plastic grip.
  • Top cover is recessed for membrane display or keypad.

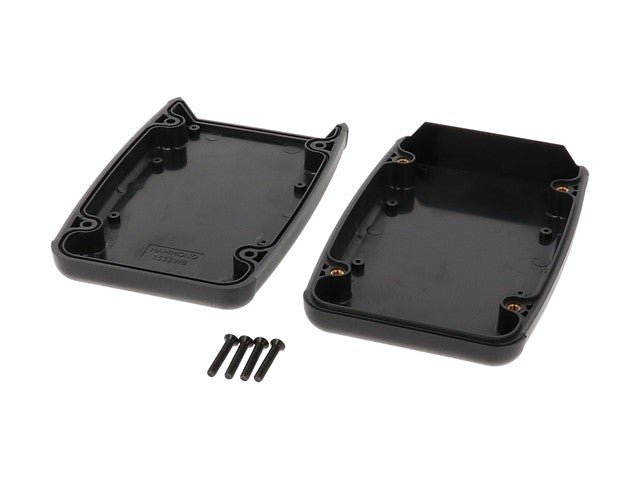

  • P.C. board standoffs are molded into both the top & bottom of the enclosure (see drawings or photos for more details). Standoff screws (M2) not included.
  • Front panel is an integral part of the top half of the enclosure.
  • Choice of two enclosure colors, light grey or black - soft side "grip" plastic color is grey.
  • Enclosure is secured with black Philips, stainless steel, machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
  • Assembly hardware included - for replacement part numbers - see individual drawings.


Size L x W x H 4.62 in x 3.11 in x 0.98 in
(117 mm x 79 mm x 25 mm)
Shipping Weight 0.21 lbs (0.10 kg)
UNSPSC 39121301
UPC 623980402628
Packaging Type shrink wrap
Material ABS Plastic
Color Black
Flame Rating UL94 V-0
IP Rating IP65
Product Category Enclosures
Type Hand-held, water-tight
Max. P.C. Board Length (mm) 68.49
Max. P.C. Board Width (mm) 107.23


Additional Information

Device Enclosure
Type Watertight | IP65 | Black | ABS
