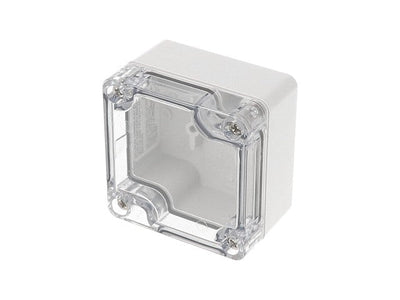

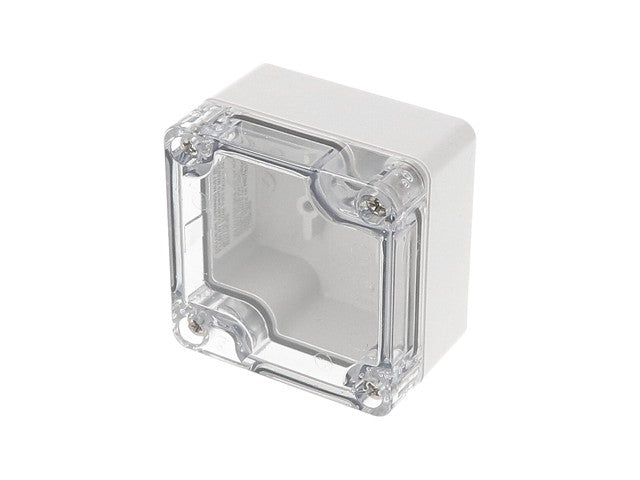

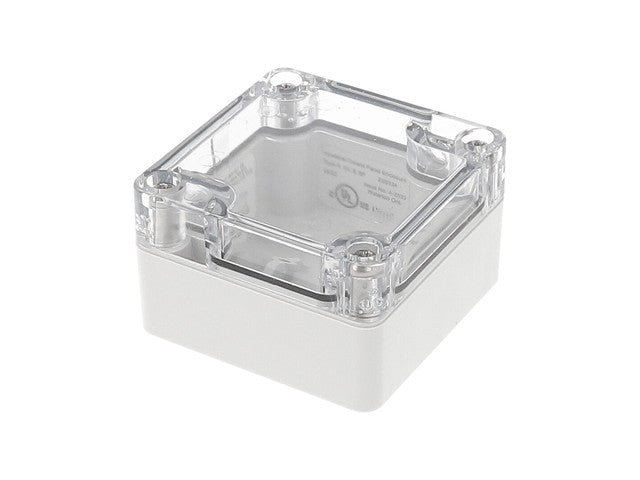

Heavy Duty Enclosure • Polycarbonate • 65 x 65 x 40.5 mm (With Lid) • Grey with Clear Lid
Features
- Ideally suited for mounting printed circuit boards or DIN rail mounted components
- Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating
- Polycarbonate versions are cUL and UL 508A listed (File # E65324)
- Enclosure color is a light gray (RAL 7035)

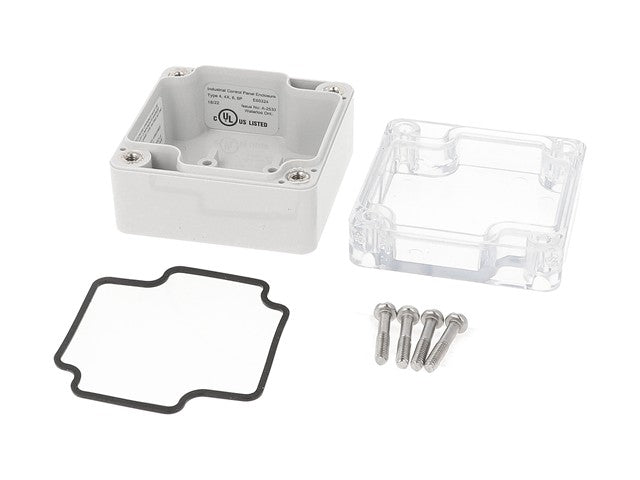

- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
- Replaceable gasket is one piece made from high temperature, U.L. listed silicone
- Supplied loose inside the enclosure (not pre-installed)
- Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings whichmeet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is 4,4X only)
- Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
Specifications
| Product Type |
Water-Tight Enclosure |
| Series |
1554 |
| Body Material |
Polycarbonate |
| Gasket Material |
Silicone |
| External Dimensions |
65 x 65 x 40.5 mm (With Lid) |
| External Length |
65 mm |
| External Width |
65 mm |
| External Height |
40.5 mm (With Lid) |
| Internal Dimensions |
58.44 x 58.44 x 34.50 mm |
| Internal Length |
58.44 mm |
| Internal Width |
58.44 mm |
| Internal Height |
34.50 mm |
| Colour |
Light Grey |
| IP Rating |
IP68 |
| Lid Colour |
Clear |
| Flame Rating |
UL94 V-0 |
| Protection Features |
Protection against Access of Oil, Dust and Water |
