1554E2GYSL

SKU: 1554E2GYSL

BRAND: Hammond

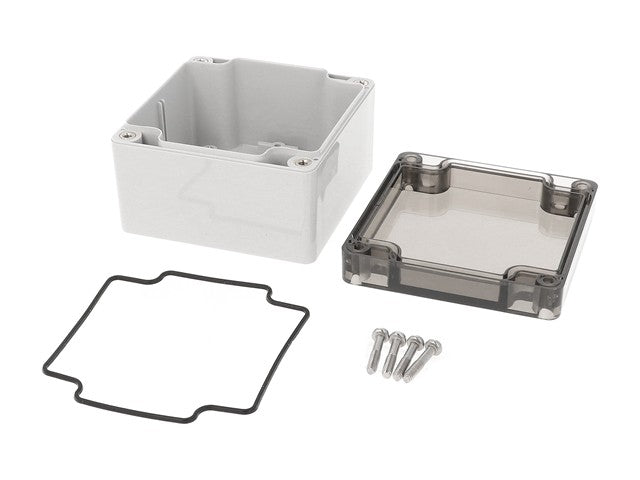

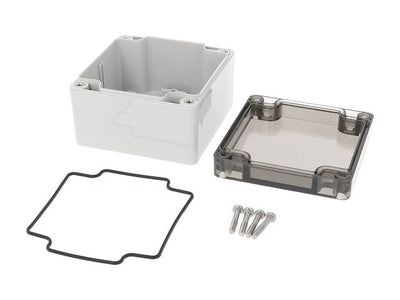

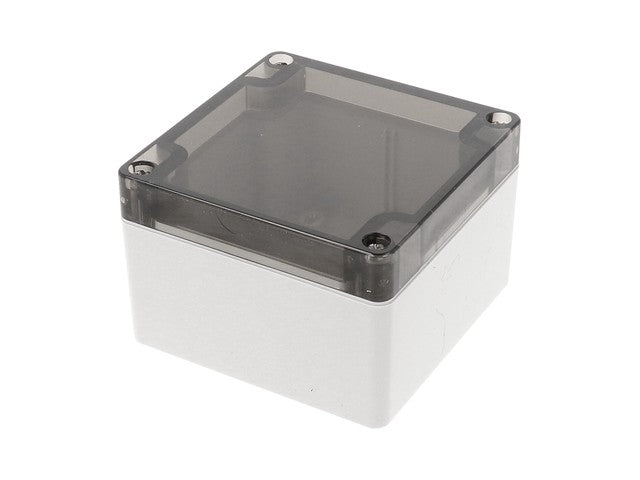

Heavy Duty Enclosure • Polycarbonate • 90x90x60mm • Grey with Smoked Lid

Heavy Duty Enclosure

Feature(s)

  • Ideally suited for mounting printed circuit boards or DIN rail mounted components
  • Clear polycarbonate lid allows for maximum visability of protected internal components
  • Material - Polycarbonate (material carries a UL flammability rating of UL94 5V) - Recommended for outdoor use
  • Color is a light gray (RAL 7035)
  • Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water
  • Gasket is factory poured using high temperature U.L. listed - silicone rubber gasket material
  • Designed to meet IP 66 & NEMA 4, 4X, 12 & 13 ratings
  • Lid is secured with self captivating - M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly)
  • All stainless steel hardware to avoid corrosion caused by dissimilar metals
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
  • Internal features are maximized for mounting options: Internal DIN rail mounting tabs - molded in -
  • Options vary with size. Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size
  • Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size enclosure
  • Smoked Lid

Specifications

Size L x W x H 3.5 in x 3.5 in x 2.4 in
(89 mm x 89 mm x 61 mm)
Shipping Weight 0.35 lbs (0.16 kg)
UNSPSC 39121301
UPC 623980132518
UL File # E65324
Packaging Type shrink wrap
Material Polycarbonate
Color Light Gray
Flame Rating UL94 V-0
IP Rating IP68
Product Category Enclosures
Type Water-tight
NEMA Rating 4, 4X, 6, 6P, 12 & 13
Max. P.C. Board Length (mm) 77.47
Max. P.C. Board Width (mm) 78.41

Downloads

Additional Information

Device Enclosure
Type Heavy Duty
