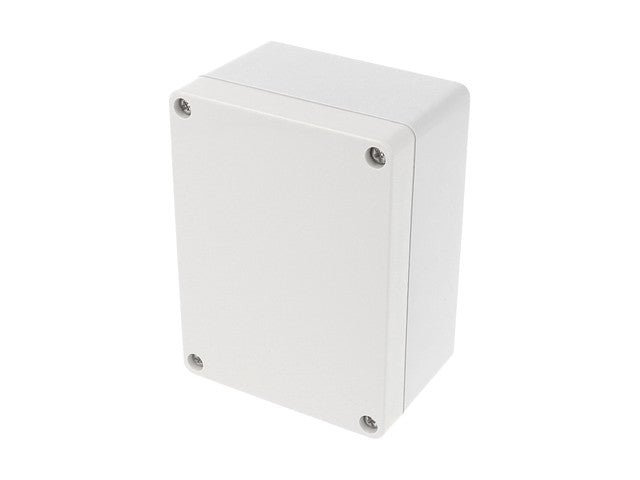

Polycarbonate Enclosure 120x90x60mm Grey IP66 Watertight Flat Lid
Polycarbonate Grey Enclosure
Feature(s)
- Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
- ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
- Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
- Polycarbonate versions are cUL and UL 508A listed (File # E65324). ABS plastic versions are not UL listed.
- Enclosure color is a light gray (RAL 7035).

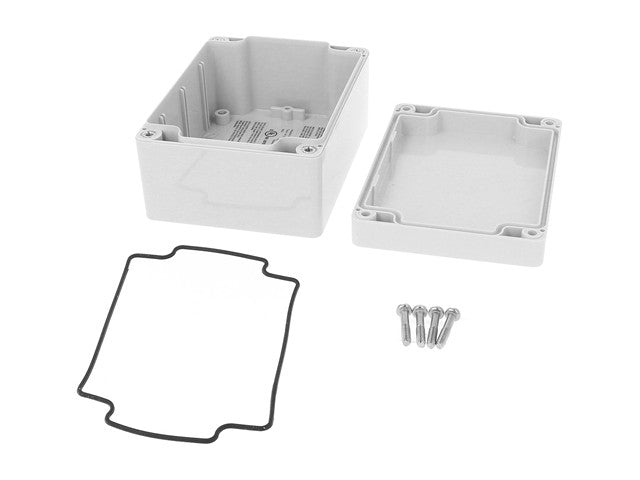

- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
- Replaceable gasket is one piece made from high temperature, U.L. listed silicone. Supplied loose inside the enclosure (not pre-installed).
- Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is 4,4X only)
- ABS Plastic versions are designed to meet IP66.
- Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals.
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
- Internal features are maximized for mounting options and vary with size:
- Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.
- Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size (“B”).
- Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size (“B”).
Specifications
- Size L x W x H : 119 mm x 89 mm x 61 mm
- Shipping Weight : 0.42 lbs (0.19 kg)
- UNSPSC : 39121301
- UPC : 62398030404
- REACH Compliant : Yes
- RoHS Compliant : Yes
- UL File # : E65324
- Material : ABS Plastic
- Color : Light Gray
- Flame Rating : UL94-5VA
- IP Rating : IP68
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : Water-tight
- NEMA Rating 4, 4X, 6, 6P, 12 & 13
Downloads
Additional Information
| Device |
Enclosure |
| Type |
Polycarbonate | Grey |
Protect your electronic components with the 1554F2GY Polycarbonate Enclosure. Measuring 120x90x60mm, this watertight, IP66-rated enclosure features a durable grey design and is perfect for outdoor use. Its secure, gasketed lid ensures maximum protection against dust, water, and oils, while internal mounting options provide versatility for your projects. Trust in its superior quality and safeguard your devices today!
