1554J2GYCL

SKU: 1554J2GYCL

BRAND: Hammond

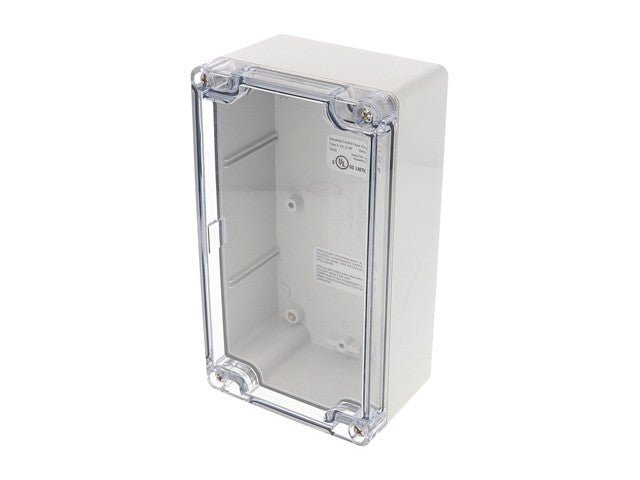

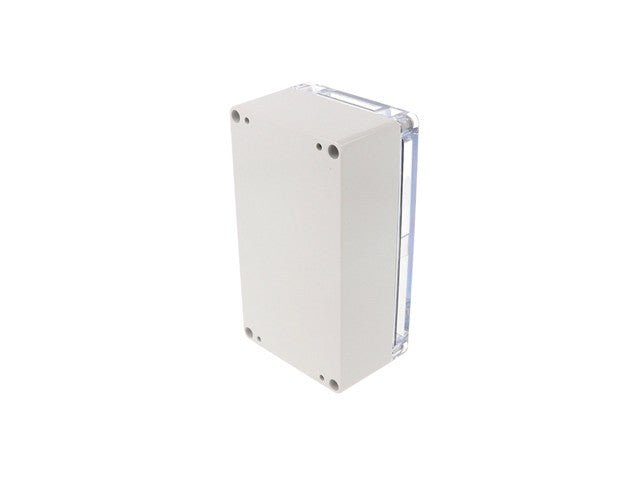

Heavy Duty Enclosure • Polycarbonate • 160 x 90 x 60.5 mm (With Lid) • Grey with Clear Lid

Features

  • Ideally suited for mounting printed circuit boards or DIN rail mounted components
  • Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating
  • Polycarbonate versions are cUL and UL 508A listed (File # E65324)
  • Enclosure color is a light gray (RAL 7035)

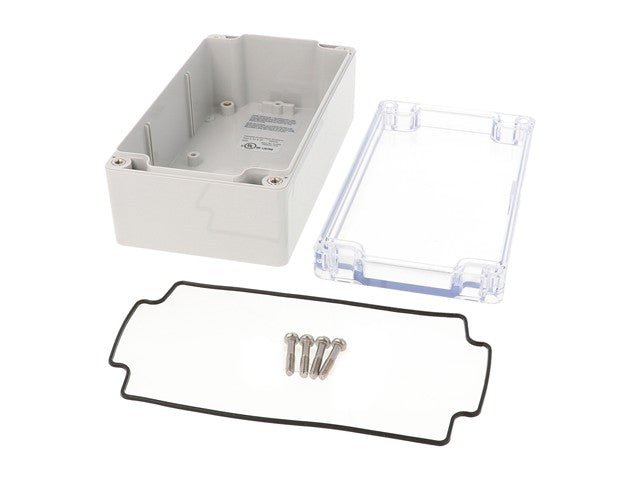

  • Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
  • Replaceable gasket is one piece made from high temperature, U.L. listed silicone
  • Supplied loose inside the enclosure (not pre-installed)
  • Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings whichmeet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is 4,4X only)
  • Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)

Specifications

Product Type Water-Tight Enclosure
Series 1554
Body Material Polycarbonate
Gasket Material Silicone
External Dimensions 160 x 90 x 60.5 mm (With Lid)
External Length 160 mm
External Width 90 mm
External Height 60.5 mm (With Lid)
Internal Dimensions 152.91 x 78.91 x 54.50 mm
Internal Length 152.91 mm
Internal Width 78.91 mm
Internal Height 54.50 mm
Colour Light Grey
IP Rating IP68
Lid Colour Clear
Flame Rating UL94 V-0
Protection Features Protection against Access of Oil, Dust and Water
