1554JGY

Name: 1554JGY - Communica [Part No: 1554JGY]
Brand: Hammond
SKU: 1554JGY
Price: 261.50 ZAR
Availability: InStock

SKU: 1554JGY

BRAND: Hammond

In Stock
R 300.73_{(inc VAT)}
R 261.50_{(ex VAT)}

Collections: Enclosures

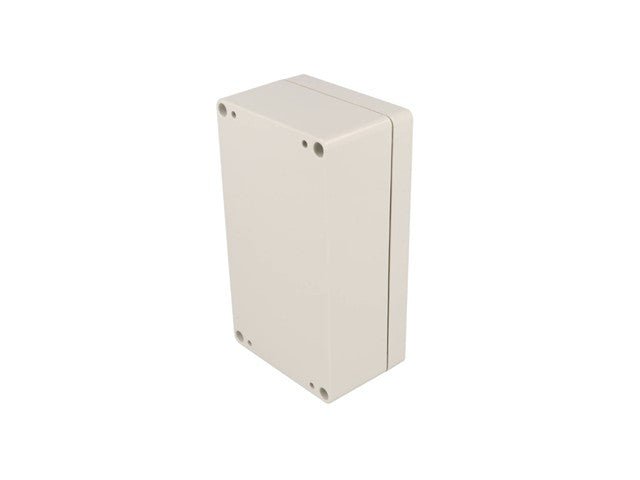

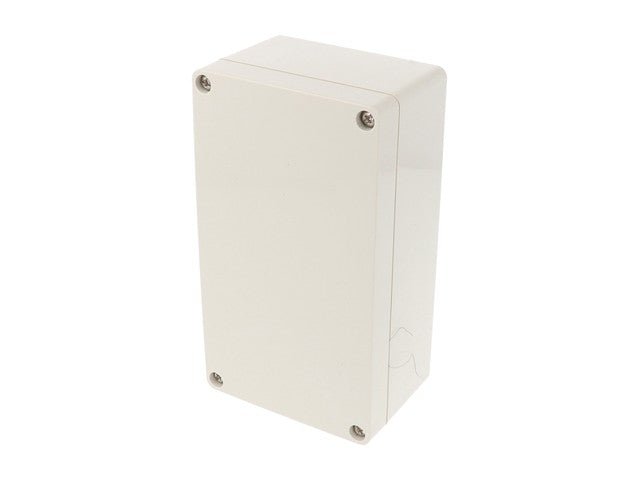

ABS Enclosure 160 x 90 x 60.5 mm (With Lid) IP66 Grey

Features

Ideally suited for mounting printed circuit boards or DIN rail mounted components
ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use
Enclosure color is a light gray (RAL 7035)

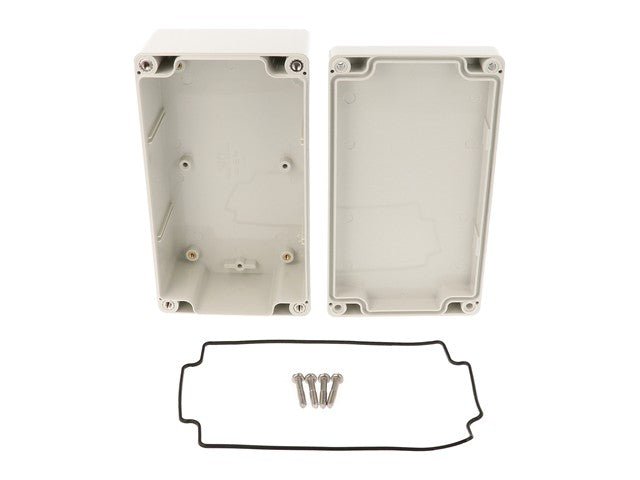

Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
Replaceable gasket is one piece made from high temperature, U.L. listed silicone
Supplied loose inside the enclosure (not pre-installed)
ABS Plastic versions are designed to meet IP66
Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals
Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)

Product Type	Water-Tight Enclosure
Series	1554
Body Material	ABS Plastic
Gasket Material	Silicone
External Dimensions	160 x 90 x 60.5 mm (With Lid)
External Length	160 mm
External Width	90 mm
External Height	60.5 mm (With Lid)
Internal Dimensions	152.91 x 78.91 x 54.50 mm
Internal Length	152.91 mm
Internal Width	78.91 mm
Internal Height	54.50 mm
Colour	Light Grey
IP Rating	IP66
Lid Colour	Grey
Flame Rating	UL94-HB
Protection Features	Protection against Access of Oil, Dust and Water
