BRAND: Hammond

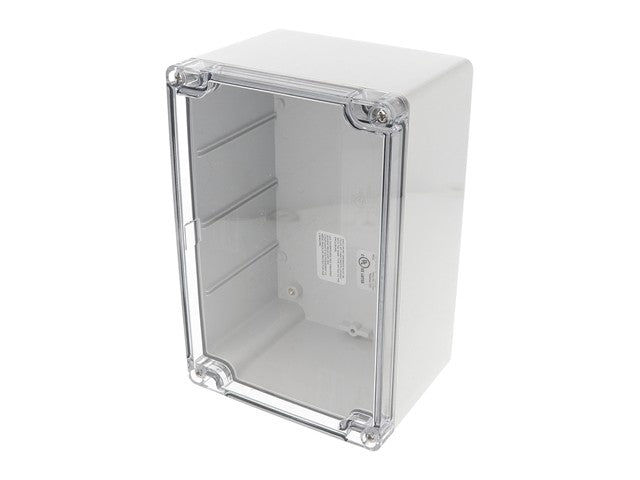

Heavy Duty Enclosure • Polycarbonate • 180x120x90mm • Grey with Clear Lid


  • Ideally suited for mounting printed circuit boards or DIN rail mounted components
  • Clear polycarbonate lid allows for maximum visability of protected internal components
  • Material - Polycarbonate (material carries a UL flammability rating of UL94 5V) - Recommended for outdoor use
  • Color is a light gray (RAL 7035)

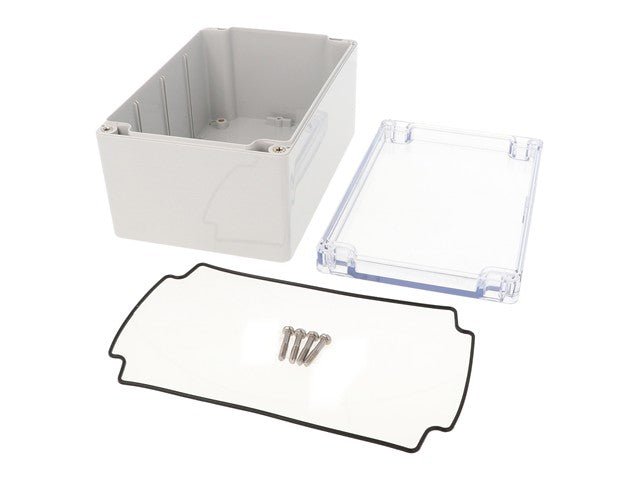

  • Gasketed lid with two piece "tongue & groove" construction provides protection against access of oil, dust and water
  • Gasket is factory poured using high temperature U.L. listed - silicone rubber gasket material
  • Designed to meet IP 66 & NEMA 4, 4X, 12 & 13 ratings
  • Lid is secured with self captivating - M4 stainless steel machine screws (included), threaded into integral stainless steel bushings (for repetitive assembly & disassembly)
  • All stainless steel hardware to avoid corrosion caused by dissimilar metals
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
  • Internal features are maximized for mounting options: Internal DIN rail mounting tabs - molded in -
  • Options vary with size. Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size
  • Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size enclosure
  • Clear Lid


Additional Information

Sub Group Heavy Duty
Group Plastic Enclosure
Model 1554T2GYCL
Device Heavy Duty
Body Material Polycarbonate
Size 180mm x 120mm x 90mm
Base Colour Grey
