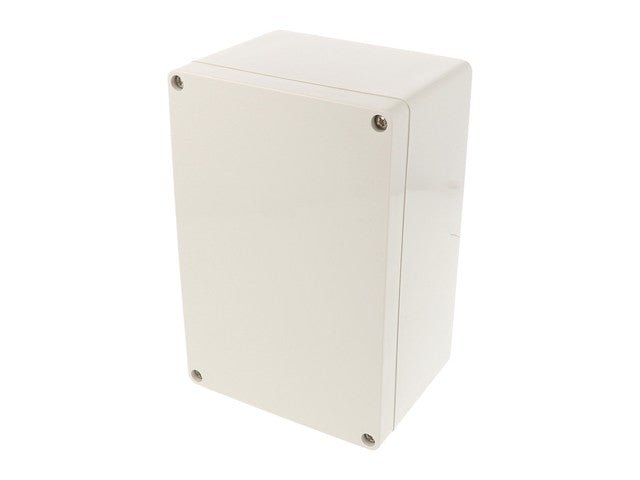

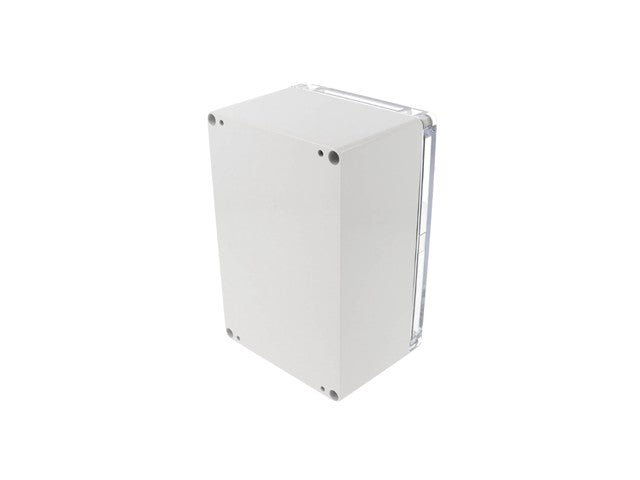

ABS Enclosure 180 x 120 x 90mm IP66 Grey
ABS IP66 Grey Enclosure 180 x 120 x 90mm
Feature(s)
- Ideally suited for mounting printed circuit boards or DIN rail mounted components.
- Enclosure color is a light gray (RAL 7035).

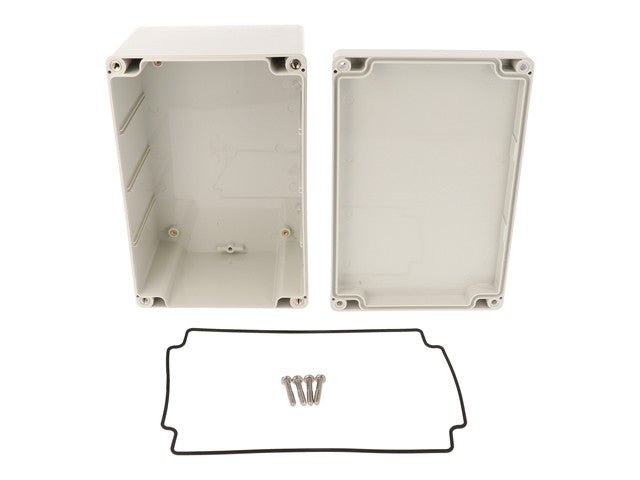

- Gasketed lid with two piece tongue and groove construction provides protection against access of oil, dust and water.
- Replaceable gasket is one piece made from high temperature UL listed silicone. Supplied loose inside the enclosure (not pre-installed).
- Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly and disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
- Lid screws are self captivating. Lid holes are threaded with the first installation of lid screws.
- Internal features are maximized for mounting options and vary with size:
- Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.
- Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for PC board or inner panel mounting in all but the smallest sizes ("A" and “B”).
- Vertical PC card guides (for 1.5mm thick PC boards) are molded in all but the smallest sizes ("A" and “B”).
Specifications
Downloads
Additional Information
| Device |
Enclosure |
| Type |
ABS | IP66 | Grey | 180 x 120 x 90mm |
