1554UGY

Name: 1554UGY - Communica [Part No: 1554UGY]
Brand: Hammond
SKU: 1554UGY
Price: 435 ZAR
Availability: InStock

SKU: 1554UGY

BRAND: Hammond

In Stock
R 500.25_{(inc VAT)}
R 435.00_{(ex VAT)}

Collections: Enclosures

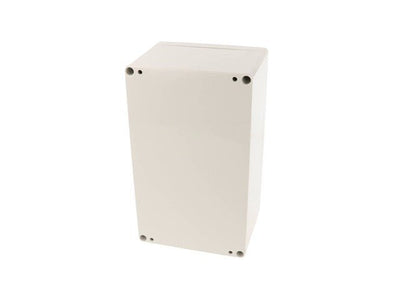

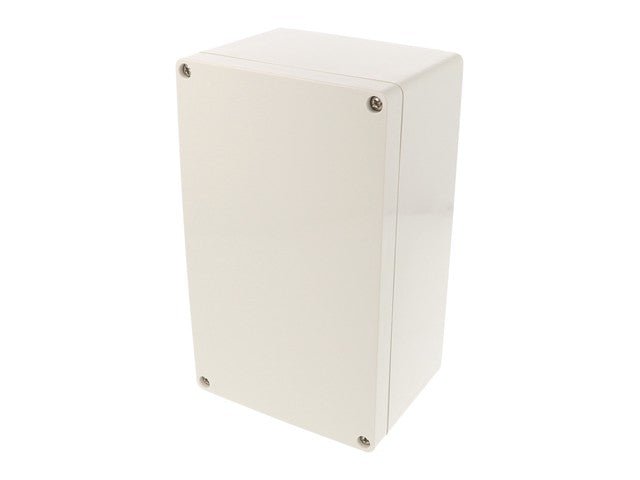

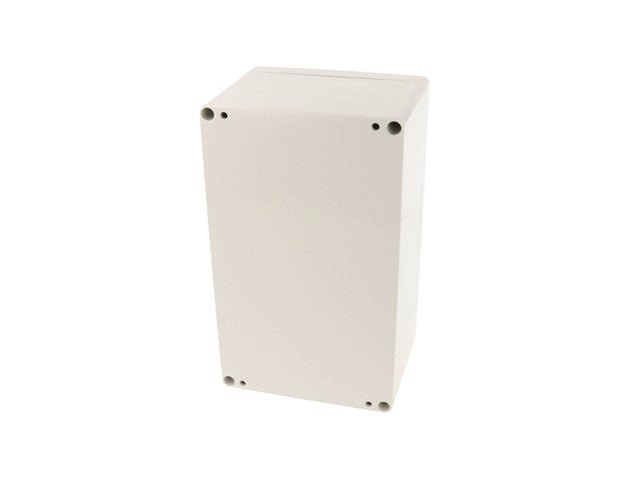

ABS Enclosure 200 x 120 x 90.5 mm (With Lid) IP66 Grey

Features

Ideally suited for mounting printed circuit boards or DIN rail mounted components
ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use
Enclosure color is a light gray (RAL 7035)

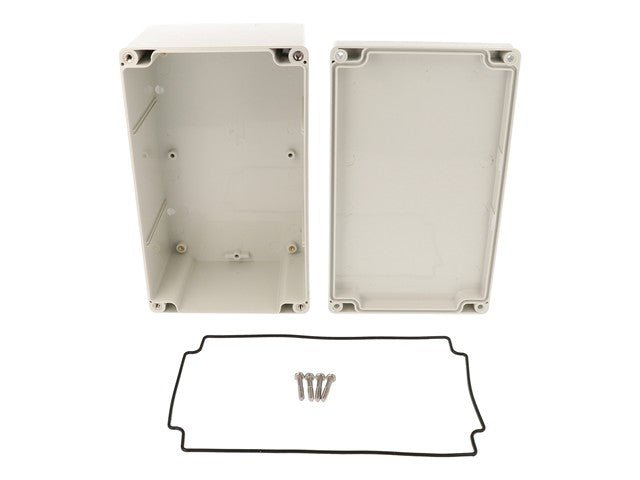

Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
Replaceable gasket is one piece made from high temperature, U.L. listed silicone
Supplied loose inside the enclosure (not pre-installed)
ABS Plastic versions are designed to meet IP66
Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals
Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)

Product Type	Water-Tight Enclosure
Series	1554
Body Material	ABS Plastic
Gasket Material	Silicone
External Dimensions	200 x 120 x 90.5 mm (With Lid)
External Length	200 mm
External Width	120 mm
External Height	90.5 mm (With Lid)
Internal Dimensions	192.13 x 108.13 x 84.50 mm
Internal Length	192.13 mm
Internal Width	108.13 mm
Internal Height	84.50 mm
Colour	Light Grey
IP Rating	IP66
Lid Colour	Grey
Flame Rating	UL94-HB
Protection Features	Protection against Access of Oil, Dust and Water
