1554VGY

SKU: 1554VGY

BRAND: Hammond

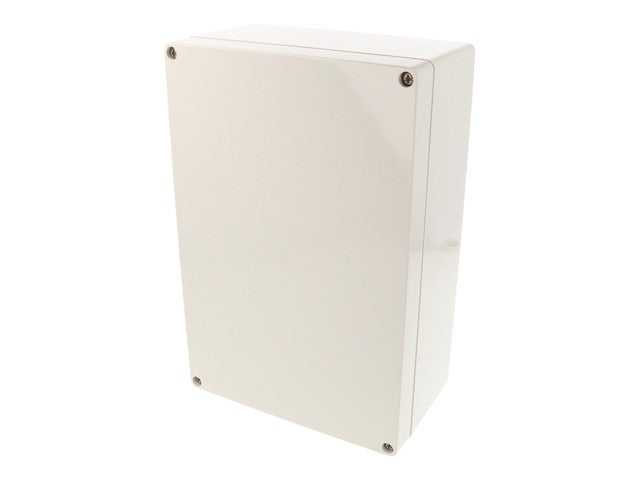

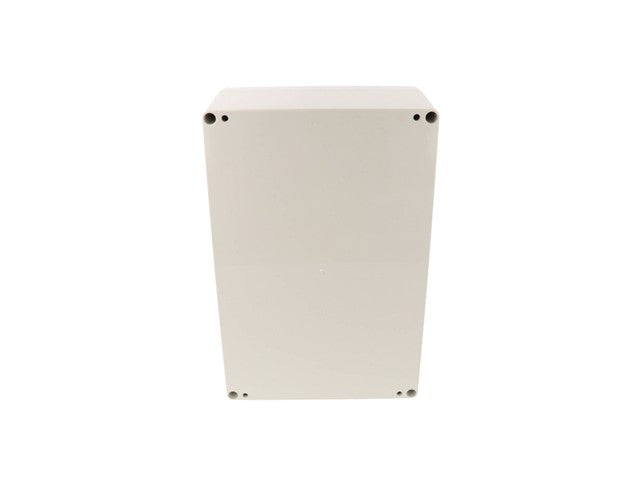

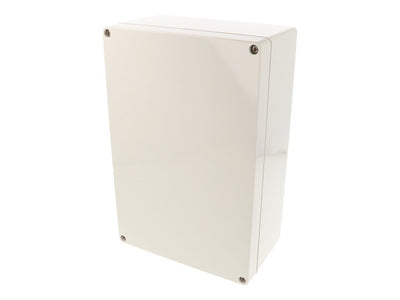

ABS Enclosure 240 x 160 x 90 mm (With Lid) IP66 Grey 6 Screws

Features

  • Ideally suited for mounting printed circuit boards or DIN rail mounted components
  • ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use
  • Enclosure color is a light gray (RAL 7035)

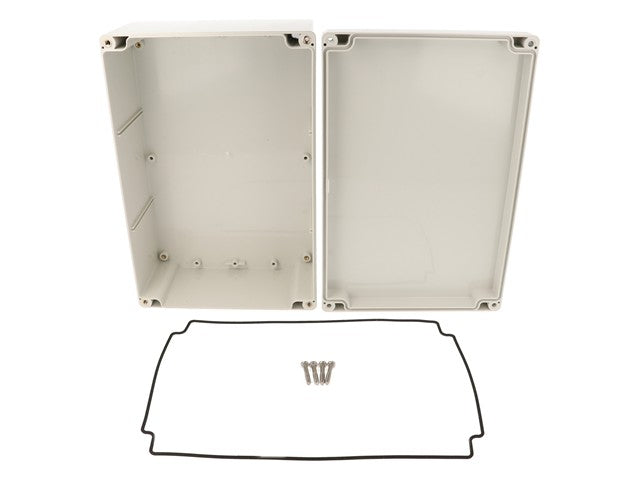

  • Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
  • Replaceable gasket is one piece made from high temperature, U.L. listed silicone
  • Supplied loose inside the enclosure (not pre-installed)
  • ABS Plastic versions are designed to meet IP66
  • Lid is secured with included M4 stainless steel machine screws which are threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)

Specifications

Product Type Water-Tight Enclosure
Series 1554
Body Material ABS Plastic
Gasket Material Silicone
External Dimensions 240 x 160 x 90 mm (With Lid)
External Length 240 mm
External Width 160 mm
External Height 90 mm (With Lid)
Internal Dimensions 232.26 x 148.26 x 83 mm
Internal Length 232.26 mm
Internal Width 148.26 mm
Internal Height 83 mm
Colour Light Grey
IP Rating IP66
Lid Colour Grey
Flame Rating UL94-HB
Protection Features Protection against Access of Oil, Dust and Water
