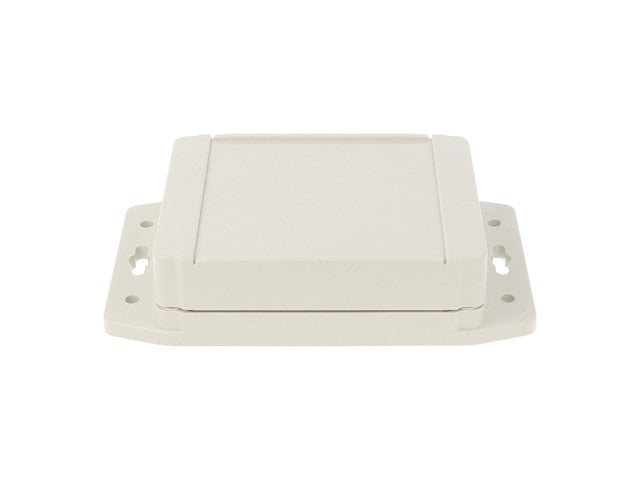

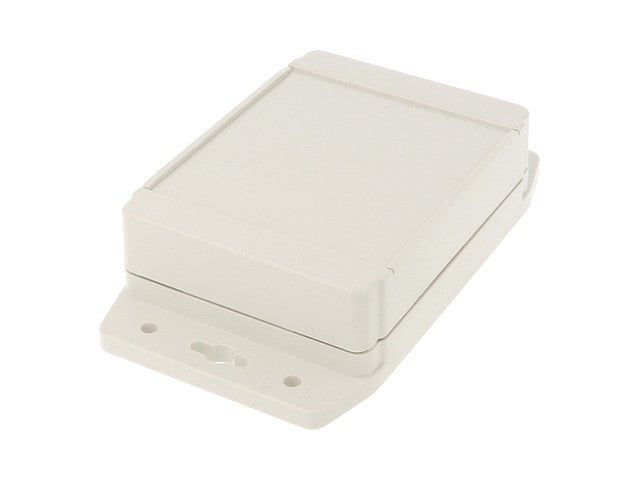

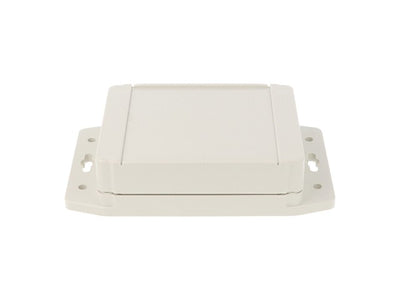

ABS Enclosure 120X91X37mm Grey Watertight IP67 Recessed Lid for Membrane or Keypad for Indoor use Wall Mount
ABS Enclosure 120X91X37mm Grey
Feature(s)
- Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls, and more).
- Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components.
- Designed for wall mounting. Interior is secure as lid screws are behind the lid.
- Satin texture RAL7035 grey finish with smooth recessed surface on lid for a membrane keypad or label.
- Standoffs molded in the interior of the lid and enclosure are designed for #4 x 1/4” self tapping screws (our part number 1555TS100)
- Gasket is one piece made from high temperature, UL listed silicone. Supplied loose inside the enclosure (not pre-installed).
- Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly and disassembly.
- Order part number SC576-50 for replacement M4 x 20mm lid assembly screws.
- Internal features are maximized for mounting options and vary with size:
- Internal DIN rail mounting tabs molded into lid (except 1555CF22 & 1555CF42 sizes).
- Standoffs for PC board or inner panel.
Specifications
Downloads
Additional Information
| Device |
Enclosure |
| Type |
ABS | 120X91X37mm | Grey |
| Highlights |
for Indoor use Wall Mount |
Discover the 1555FF17GY ABS Enclosure, designed for durability in harsh environments. This watertight, IP67-rated enclosure is perfect for wall mounting your circuit boards or keypads securely. Its sleek grey finish and molded standoffs ensure easy installation, making it an ideal choice for outdoor controls and industrial applications. Upgrade your project with this reliable and versatile enclosure today!
