1555HF42GY

SKU: 1555HF42GY

BRAND: Hammond

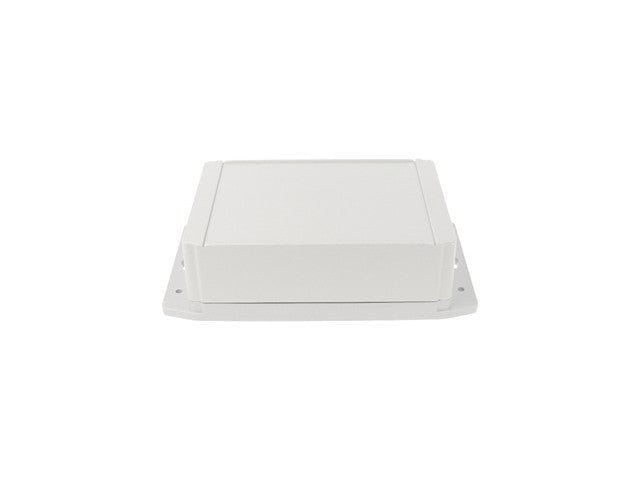

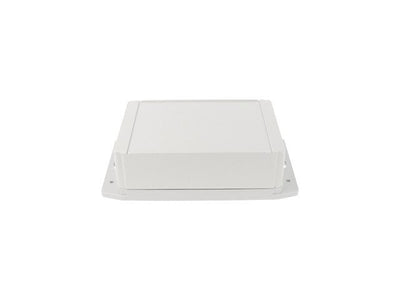

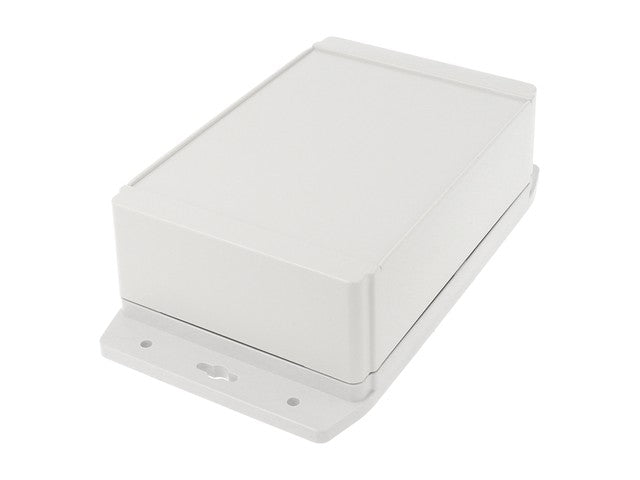

Enclosure ABS 180x119x62mm IP67 Grey Flanged Lid

Features

  • Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls etc. etc.)
  • Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components
  • Designed for wall mounting. Interior is secure as lid screws are behind the lid. Can be made more secure if wall mounted with security screws (tamper resistant screws)
  • Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
  • Standoffs molded in the interior of the lid & enclosure - designed for #4 x 1/4” self tapping screws (our part number 1555TS100)
  • General purpose ABS plastic (material carries a UL flammability rating of UL94 HB). Not recommended for outdoor use
  • Color is a light gray (RAL 7035) to help keep heat absorption down

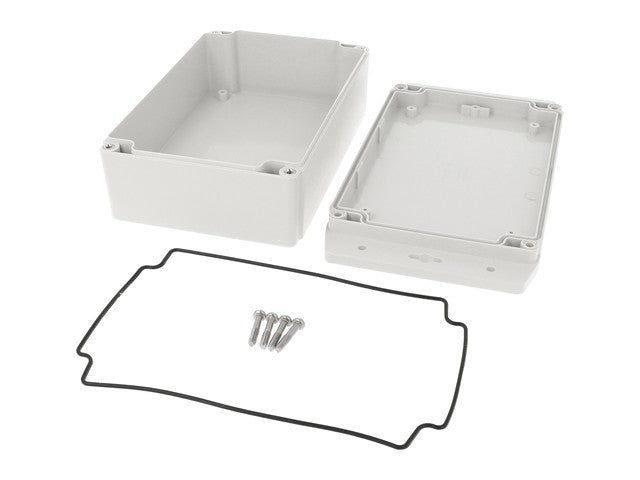

  • Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water
  • Gasket is one piece made from high temperature, U.L. listed silicone. Supplied loose inside the enclosure (not pre-installed)
  • Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68
  • Flanged lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals
  • Flanged lid screws are self captivating (lid holes are threaded with the first installation of lid screws)

Specifications

  • Size L x W x H : 180 mm x 119 mm x 62 mm)
  • Shipping Weight : 0.3 lbs (0.14 kg)
  • UNSPSC : 39121301
  • UPC : 62398002345
  • UL File # : E65324
  • REACH Compliant : Yes
  • RoHS Compliant : Yes
  • Material : ABS Plastic
  • Color : Light Gray
  • Flame Rating : UL94-HB
  • IP Rating : IP67
  • Packaging : shrink wrap
  • Product Category : Enclosures
  • Type : Water-tight, flanged
