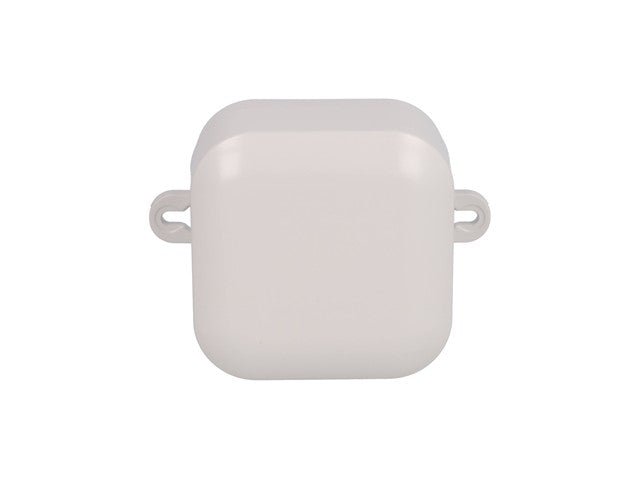

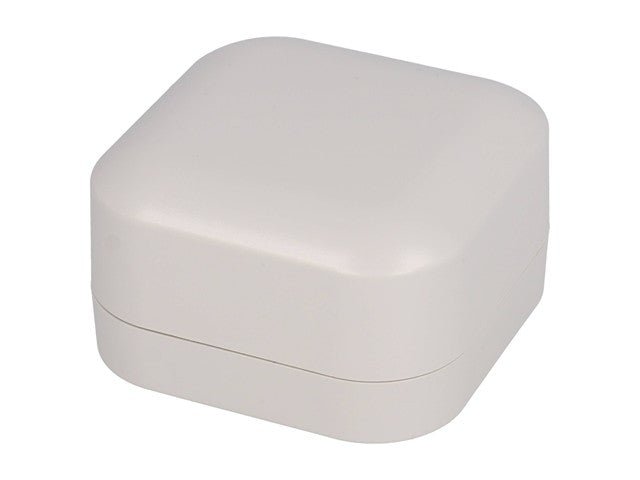

Enclosure Polycarbonate - Multiple Mounting Type - Water Tight 80x80x45mm IP68 Light Grey
Multiple Mounting Polycarbonate Enclosure
Feature(s)
- Ideally suited for mounting printed circuit boards.

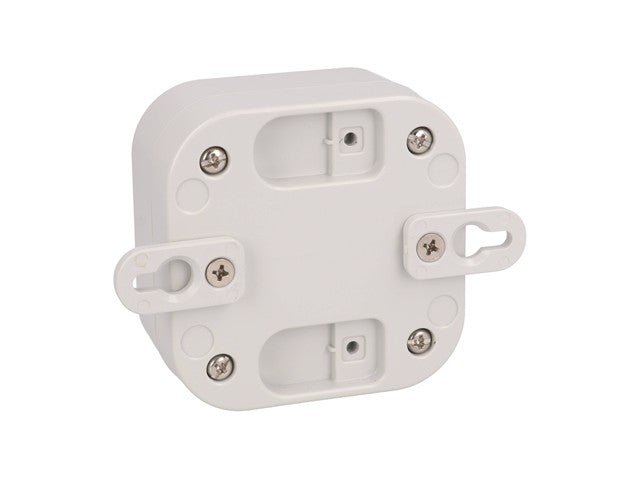

- Can be used in a tabletop configuration or two different wall-mount configurations.
- Rounded corners and face provide a more modern look while still offering superior water-tight ratings.
- Available in black or gray ABS plastic or UL listed polycarbonate
- ABS versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
- Polycarbonate versions are UV stabilized for outdoor use and carry a UL94-5VA flammability rating. For indoor or outdoor use.
- Polycarbonate versions are cUL and UL 508A listed (File # E65324), NEMA 4, 4X, 6, 6P. ABS plastic versions are not UL listed.

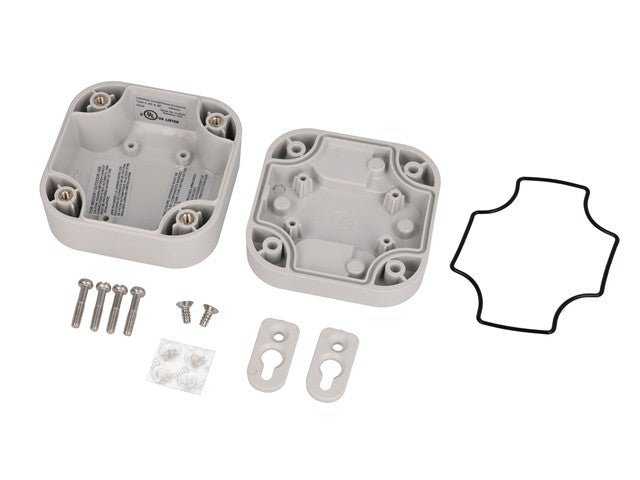

- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
- Gasket is one piece made from high temperature, U.L. listed silicone.
- ABS versions are designed to meet IP66
- Polycarbonate versions are designed to meet IP68
- Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
Specifications
- Size L x W x H : 3.15 in x 3.15 in x 1.77 in(80 mm x 80 mm x 45 mm)
- Shipping Weight : 0.28 lbs (0.13 kg)
- UNSPSC : 39121301
- UPC : 623980987491
- UL File # : E65324
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : Polycarbonate
- Color : Light Gray
- Flame Rating : UL94 V-0
- IP Rating : IP68
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : Water-tight
- NEMA Rating : 4, 4X, 6, 6P, 12 & 13
Downloads
Additional Information
| Device |
Enclosure |
| Type |
Multiple Mounting | Polycarbonate |
