1590DDFL

SKU: 1590DDFL

BRAND: Hammond

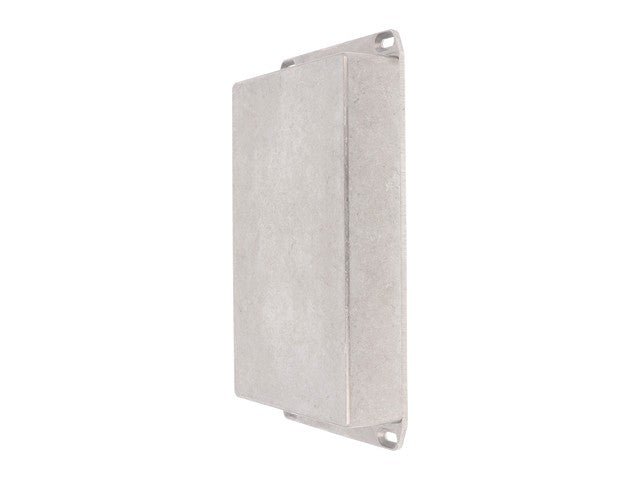

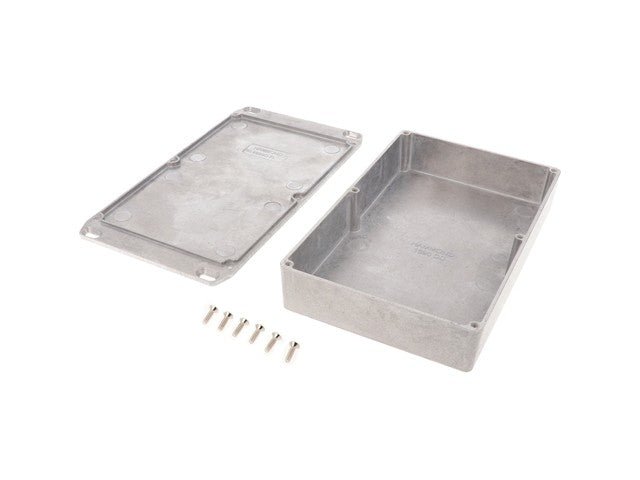

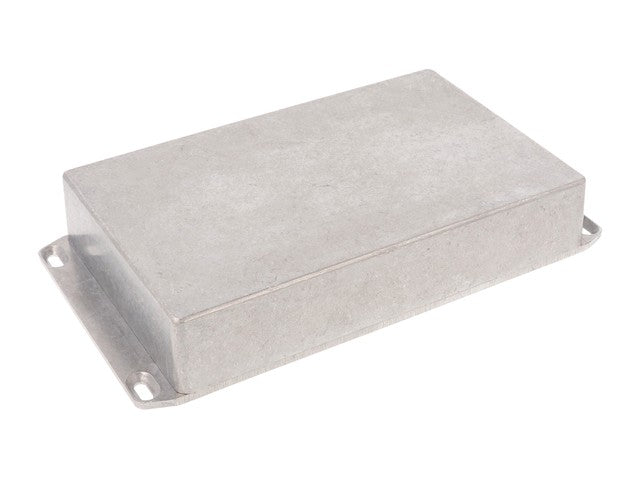

Multipurpose Enclosure • Diecast Aluminium • with Flanged Lid • 188x120x33mm • Unpainted

Diecast Aluminium Multipurpose Enclosure

Feature(s)

  • Rugged diecast aluminum alloy electronic instrument enclosure.
  • Diecast aluminum is tough yet easy to machine.
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
  • Includes screws threaded into factory-tapped holes. Screw type and quantity vary.
  • Standard versions are designed to meet IP54.
  • Watertight versions are designed to meet IP65 and include a gasket.  Gasket is supplied loose inside the enclosure (not pre-installed).
  • Low side wall draft angle (2° or less) for easy PC board mounting.

Specifications

Size L x W x H 7.4 in x 4.72 in x 1.46 in
(188 mm x 120 mm x 37 mm)
Shipping Weight 1.06 lbs (0.48 kg)
Packaging Type shrink wrap
Material Aluminum (Die-Cast Alloy)
Color Natural Aluminum
IP Rating IP54
Product Category Enclosures
Type Die-cast box, flanged
Max. P.C. Board Length (mm) 110.26
Max. P.C. Board Width (mm) 178.26

Downloads

Additional Information

Device Enclosure
Type Diecast Aluminium | Multipurpose
