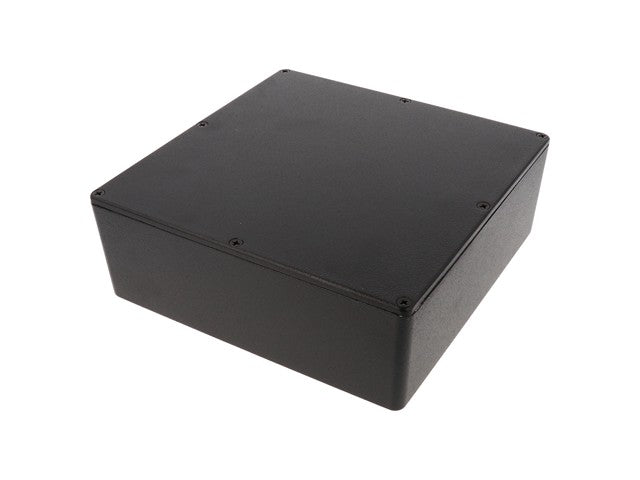

1590FBK

SKU: 1590FBK

BRAND: Hammond


Multipurpose Enclosure • Diecast Aluminium • 188 mm x 188 mm x 67 mm • Black

Diecast Aluminium Multipurpose Enclosure

Feature(s)

  • Rugged diecast aluminum alloy electronic instrument enclosure.
  • Diecast aluminum is tough yet easy to machine.
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
  • Includes screws threaded into factory-tapped holes. Screw type and quantity vary.
  • Standard versions are designed to meet IP54.
  • Watertight versions are designed to meet IP65 and include a gasket.  Gasket is supplied loose inside the enclosure (not pre-installed).
  • Low side wall draft angle (2° or less) for easy PC board mounting.

Specifications

Size L x W x H 7.4 in x 7.4 in x 2.64 in
(188 mm x 188 mm x 67 mm)
Shipping Weight 1.81 lbs (0.82 kg)
Packaging Type shrink wrap
Material Aluminum (Die-Cast Alloy)
Color Black
IP Rating IP54
Product Category Enclosures
Type Die-cast box
Max. P.C. Board Length (mm) 174.91
Max. P.C. Board Width (mm) 174.91

Downloads

Additional Information

Device Enclosure
Type Diecast Aluminium | Multipurpose
