1590LBFLBK

SKU: 1590LBFLBK

BRAND: Hammond

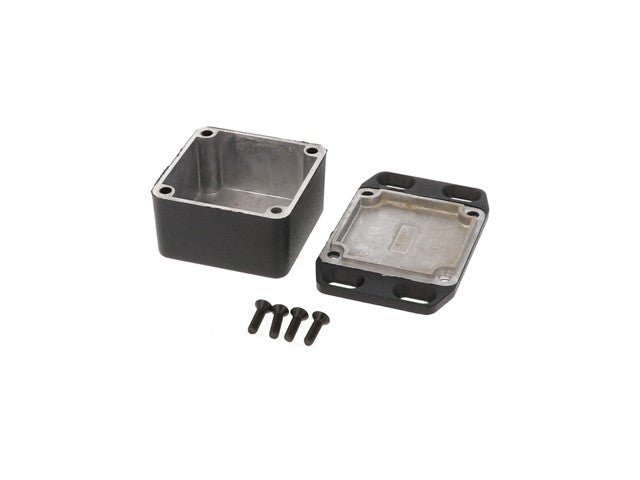

Diecast Aluminium Black Enclosure 50 x 50 x 31mm Flanged Lid

Diecast Aluminium Black Enclosure

Feature(s)

  • Rugged diecast aluminum alloy electronic instrument enclosure.
  • Diecast aluminum is tough yet easy to machine.
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
  • Includes screws threaded into factory-tapped holes. Screw type and quantity vary.
  • Standard versions are designed to meet IP54.
  • Watertight versions are designed to meet IP65 and include a gasket.  Gasket is supplied loose inside the enclosure (not pre-installed).
  • Low side wall draft angle (2° or less) for easy PC board mounting.

Specifications

Size L x W x H 1.99 in x 1.99 in x 1.22 in
(51 mm x 51 mm x 31 mm)
Shipping Weight 0.17 lbs (0.08 kg)
Packaging Type bag
Material Aluminum (Die-Cast Alloy)
Color Black
IP Rating IP54
Product Category Enclosures
Type Die-cast box, flanged
Max. P.C. Board Length (mm) 44.7
Max. P.C. Board Width (mm) 44.7

Downloads

Additional Information

Device Enclosure
Type Diecast Aluminium | Black
