1590LLB

SKU: 1590LLB

BRAND: Hammond


Diecast Aluminium Natural Finish 50x50x25

Diecast Aluminium Natural Finish Encloure

Feature(s)

  • Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure.
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.

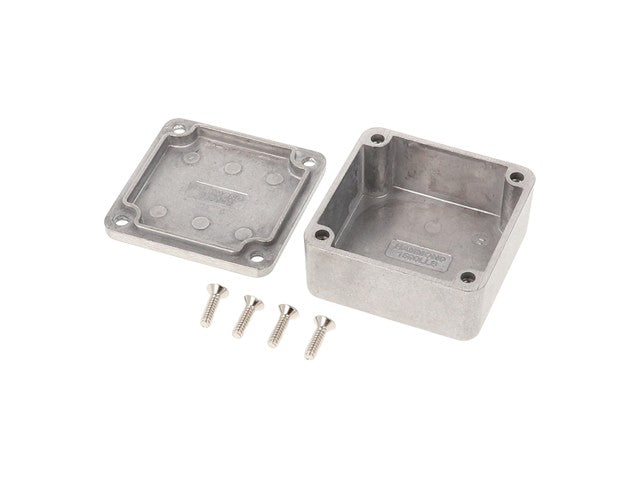

  • Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings.
  • Standard versions are designed to meet IP54.
  • Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed).
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.

Specifications

  • Size L x W x H    1.99 in x 1.99 in x 0.98 in (51 mm x 51 mm x 25 mm)
  • Shipping Weight : 0.15 lbs (0.07 kg)
  • UNSPSC : 39121301
  • UPC : 623980808796
  • REACH Compliant : Yes
  • RoHS Compliant : Yes
  • Material : Aluminum (Die-Cast Alloy)
  • Color : Natural Aluminum
  • IP Rating : IP54
  • Packaging : shrink wrap
  • Product Category : Enclosures
  • Type : Die-cast box
  • Max. P.C. Board Length (mm) : 44.83
  • Max. P.C. Board Width (mm) : 44.83

Downloads

Additional Information

Device Enclosure
Type Diecast Aluminium | Natural Finish
Body Material Diecast Aluminium
Dimensions 50x50x25mm
Base Colour Natural Finish
