1590LLBF

SKU: 1590LLBF

BRAND: Hammond

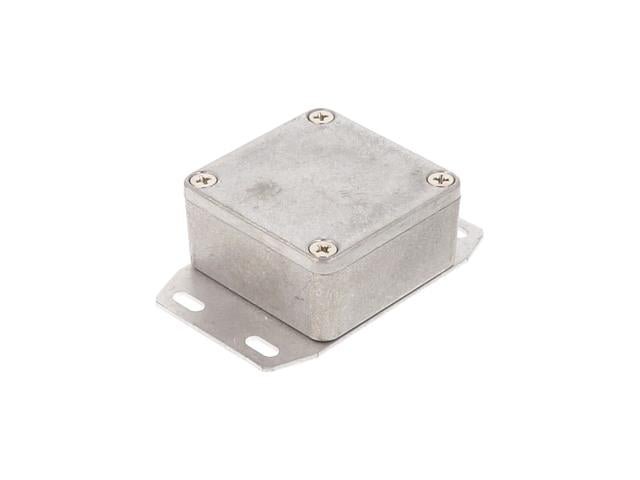

Diecast Aluminium Unpainted Enclosure 51 mm x 51 mm x 25 mm Bottom Flange

Diecast Aluminium Unpainted Enclosure

Feature(s)

  • Rugged diecast aluminum alloy electronic instrument enclosure.
  • Diecast aluminum is tough yet easy to machine.
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
  • Includes screws threaded into factory-tapped holes. Screw type and quantity vary.
  • Standard versions are designed to meet IP54.
  • Watertight versions are designed to meet IP65 and include a gasket.  Gasket is supplied loose inside the enclosure (not pre-installed).
  • Low side wall draft angle (2° or less) for easy PC board mounting.

Specifications

Size L x W x H 1.99 in x 1.99 in x 0.98 in
(51 mm x 51 mm x 25 mm)
Shipping Weight 0.18 lbs (0.08 kg)
UNSPSC 39121301
Packaging Type shrink wrap
Material Aluminum (Die-Cast Alloy)
Color Natural Aluminum
IP Rating IP54
Product Category Enclosures
Type Die-cast box, flanged
Max. P.C. Board Length (mm) 44.83
Max. P.C. Board Width (mm) 44.83

Downloads

Additional Information

Device Enclosure
Type Diecast Aluminium | Unpainted
