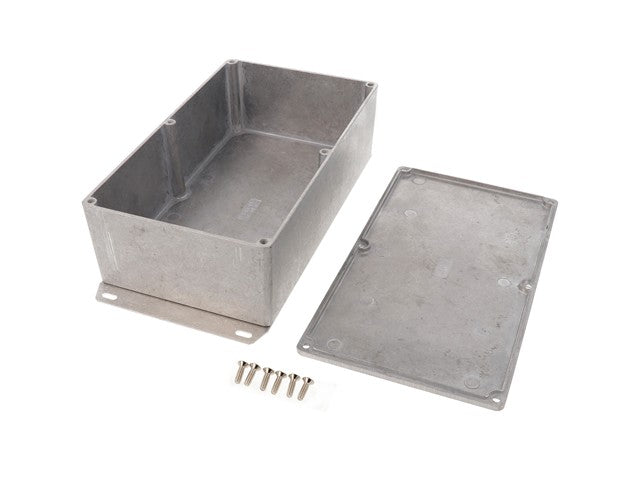

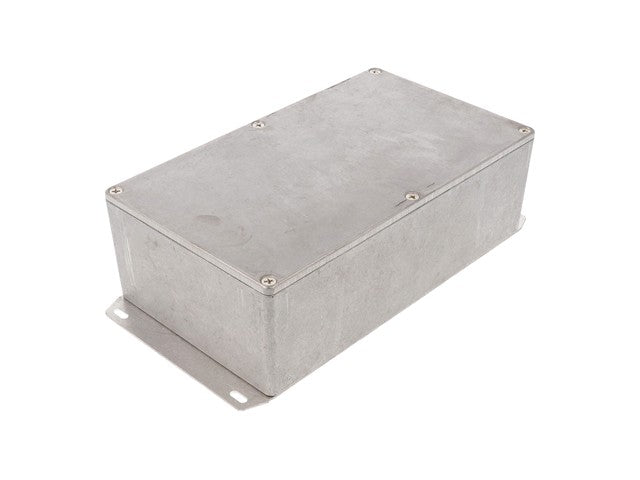

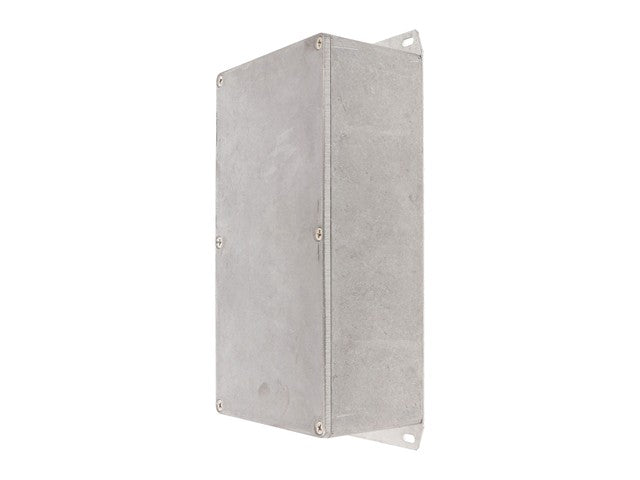

Diecast Alum Unpainted 192 X 111 X 61
Diecast Aluminium Multipurpose Enclosure
Feature(s)
- Rugged diecast aluminum alloy electronic instrument enclosure.
- Diecast aluminum is tough yet easy to machine.
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding.
- Unpainted version is vibra finished for a smooth surface with no sharp edges.
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance.
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary.
- Standard versions are designed to meet IP54.
- Watertight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed).
- Low side wall draft angle (2° or less) for easy PC board mounting.
Specifications
| Size L x W x H |
7.55 in x 4.39 in x 2.4 in
(192 mm x 112 mm x 61 mm)
|
| Shipping Weight |
1.2 lbs (0.54 kg)
|
| Packaging Type |
shrink wrap |
| Material |
Aluminum (Die-Cast Alloy) |
| Color |
Natural Aluminum |
| IP Rating |
IP54 |
| Product Category |
Enclosures |
| Type |
Die-cast box, flanged |
| Max. P.C. Board Length (mm) |
102.42 |
| Max. P.C. Board Width (mm) |
182.42 |
Downloads
Additional Information
| Device |
Enclosure |
| Type |
Diecast Aluminium | Multipurpose |
Discover the 1590R1F Diecast Aluminum Enclosure, designed for durability and protection. Its rugged construction ensures excellent EMI/RFI shielding, while the smooth, unpainted finish eliminates sharp edges for safe handling. With an IP54 rating, this multipurpose enclosure is perfect for housing electronic instruments, offering easy access for PC board mounting. Upgrade your project with this reliable, high-quality enclosure today!
