1590WC

SKU: 1590WC

BRAND: Hammond


Diecast Aluminium Unpainted 120 X 94 X 56,5 Watertight IP65

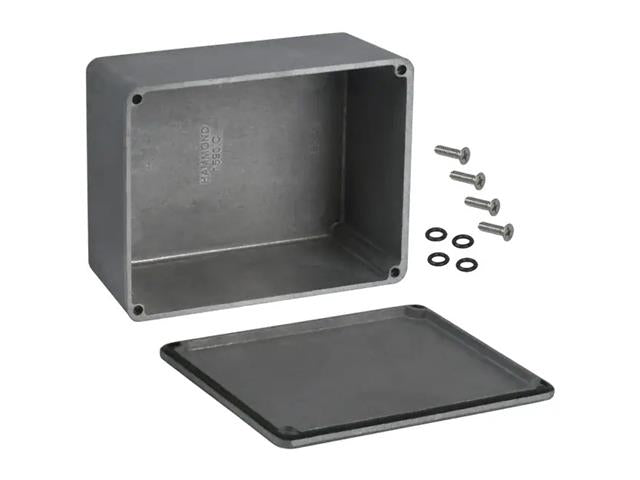

Diecast Aluminium Unpainted Enclosue

Feature(s)

  • Rugged, Diecast alluminium alloy (tough yet easy to machine), electronic instrument enclosure.
  • Lap joint construction with a factory poured silicone rubber gasket around the perimeter of the lid provides protection against access of dust and water.
  • Silicone rubber gasket remains flexible from -62 to +232ºC (-80 to +450 ºF).
  • Flanged lid allows for easy mounting to walls or shelves & provides high security (as lid screws are hidden against wall or shelf).
  • These enclosures share the same body and features as our regular type 1590 enclosure except the lid is extended and four countersunk holes are cast into the flanges.
  • Four stainless steel machine screws secure lid - into factory tapped holes.
  • Screws use neoprene "O" rings (included).
  • Designed to meet IP65.
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.

Downloads

Additional Information

Device Enclosue
Type Unpainted | Watertight | IP65
Body Material Diecast Aluminium
Dimensions 120 x 94 x 56,5mm
Base Colour Unpainted
Degree of Protection IP65

-->
