1590WDF

SKU: 1590WDF

BRAND: Hammond

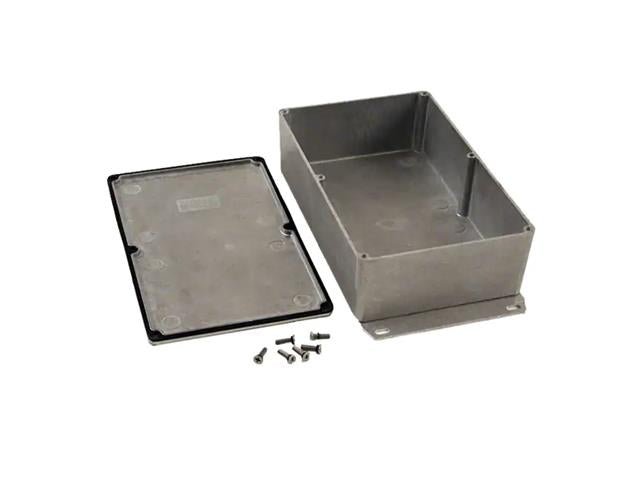

Diecast Aluminium Unpainted Enclosure 187,5x119,5x56mm Bottom Flange

Diecast Aluminium Unpainted Enclosure

Feature(s)

  • Rugged, Diecast alluminium alloy (tough yet easy to machine), electronic instrument enclosure.
  • Lap joint construction with a factory poured silicone rubber gasket around the perimeter of the lid provides protection against access of dust and water.
  • Silicone rubber gasket remains flexible from -62 to +232ºC (-80 to +450 ºF).
  • Flanged lid allows for easy mounting to walls or shelves & provides high security (as lid screws are hidden against wall or shelf).
  • These enclosures share the same body and features as our regular type 1590 enclosure except the lid is extended and four countersunk holes are cast into the flanges.
  • Four stainless steel machine screws secure lid - into factory tapped holes.
  • Screws use neoprene "O" rings (included).
  • Designed to meet IP65.
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.

Specifications

  • Size L x W x H : 187 mm x 119 mm x 52 mm)
  • Shipping Weight : 1.37 lbs (0.62 kg)
  • UNSPSC : 39121301
  • UPC : 62398067713
  • REACH Compliant : Yes
  • RoHS Compliant : Yes
  • Material : Aluminum (Die-Cast Alloy)
  • Color : Natural Aluminum
  • IP Rating : IP65
  • Packaging : shrink wrap
  • Category : Enclosures
  • Type : Die-cast box, water-tight

Downloads

Additional Information

Device Enclosure
Type Diecast | Aluminium | Unpainted
