1590WN1

SKU: 1590WN1

BRAND: Hammond

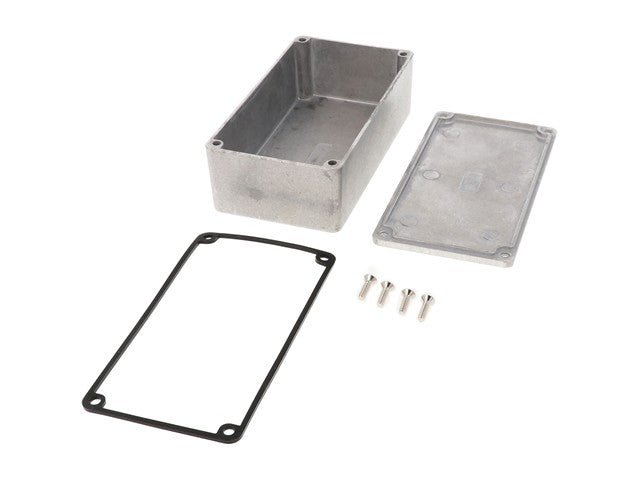

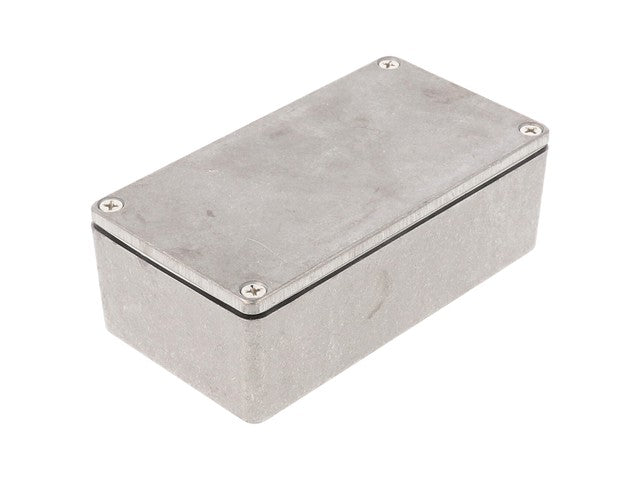

Diecast Aluminium Unpainted Enclosure 121.2 x 65.5 x 39.8 mm (With Lid)

Features

  • Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure
  • Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding
  • Unpainted version is vibra finished for a smooth surface with no sharp edges
  • Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance
  • Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings
  • Standard versions are designed to meet IP54
  • Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed)
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting

Specifications

Product Type Diecast Box Enclosure
Series 1590
Body Material Diecast Aluminium
Gasket Material Silicone
External Dimensions 121.2 x 65.5 x 39.8 mm (With Lid)
External Length 121.2 mm
External Width 65.5 mm
External Height 39.8 mm (With Lid)
Internal Dimensions 115.91 x 60.21 x 35.3 mm
Internal Length 115.91 mm
Internal Width 60.21 mm
Internal Height 35.3 mm
Colour Natural
IP Rating IP65
Lid Colour Natural
Protection Features Water-Tight
