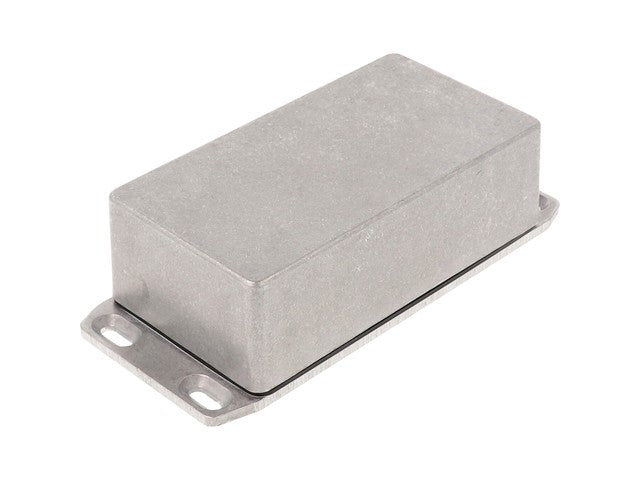

Diecast Aluminium Flanged Lid Enclosure 149.5 x 65.5 x 30.8 mm (With Lid) Watertight IP65 Flanged Lid
Features
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings
- Standard versions are designed to meet IP54

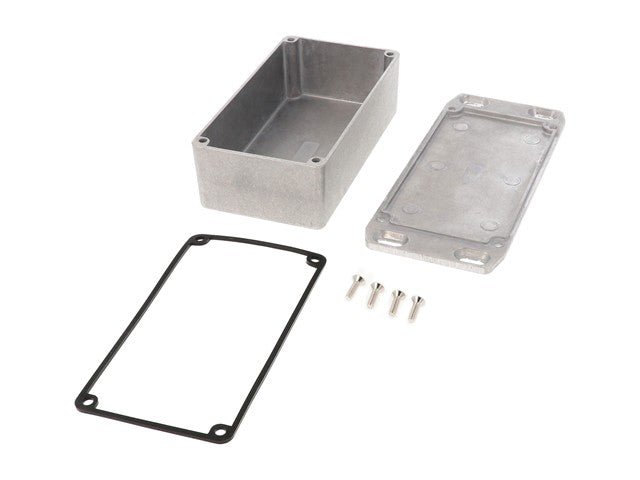

- Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed)
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
Specifications
| Product Type |
Diecast Box Enclosure |
| Series |
1590 |
| Body Material |
Diecast Aluminium |
| Gasket Material |
Silicone |
| External Dimensions |
149.5 x 65.5 x 30.8 mm (With Lid) |
| External Length |
149.5 mm |
| External Width |
65.5 mm |
| External Height |
30.8 mm (With Lid) |
| Internal Dimensions |
115.91 x 60.21 x 35.45 mm |
| Internal Length |
115.91 mm |
| Internal Width |
60.21 mm |
| Internal Height |
35.45 mm |
| Colour |
Natural |
| IP Rating |
IP65 |
| Lid Colour |
Natural |
| Protection Features |
Water-Tight |
