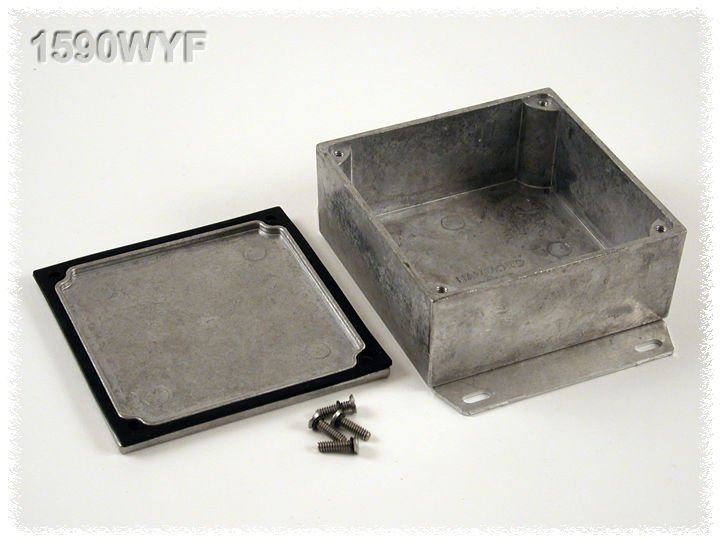

DIECAST ALUM UNPAINTED 120.65 x 92 x 43.5 mm (With Lid) BOTTOM FLANGE IP65 WITH BLACK WATERTIGHT SCREWS
Features
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings
- Standard versions are designed to meet IP54
- Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed)
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
Specifications
| Product Type |
Diecast Box Enclosure |
| Series |
1590 |
| Body Material |
Diecast Aluminium |
| Gasket Material |
Silicone |
| External Dimensions |
120.65 x 92 x 43.5 mm (With Lid) |
| External Length |
120.65 mm |
| External Width |
92 mm |
| External Height |
43.5 mm (With Lid) |
| Internal Dimensions |
85.17 x 85.17 x 36.3 mm |
| Internal Length |
85.17 mm |
| Internal Width |
85.17 mm |
| Internal Height |
36.3 mm |
| Colour |
Natural |
| IP Rating |
IP65 |
| Lid Colour |
Natural |
| Protection Features |
Water-Tight |
Downloads
Discover the 1590WYF Diecast Aluminum Enclosure, engineered for durability and water-tight protection (IP65). Its rugged design and smooth finish ensure easy machining while shielding your electronics from dust and moisture. Ideal for secure and reliable mounting, this enclosure combines functionality with sleek aesthetics, making it a perfect choice for your next project.
