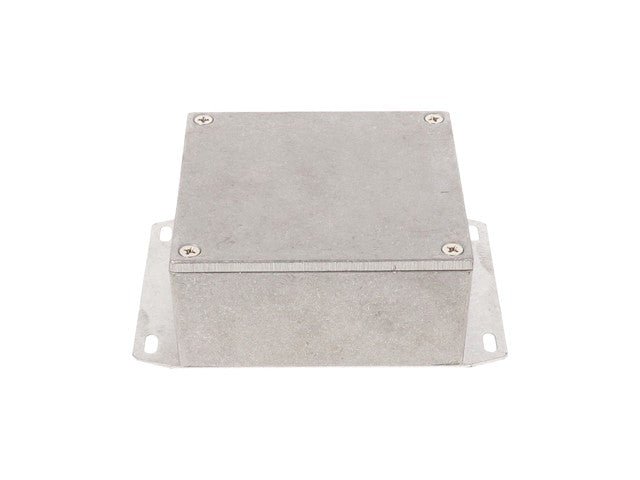

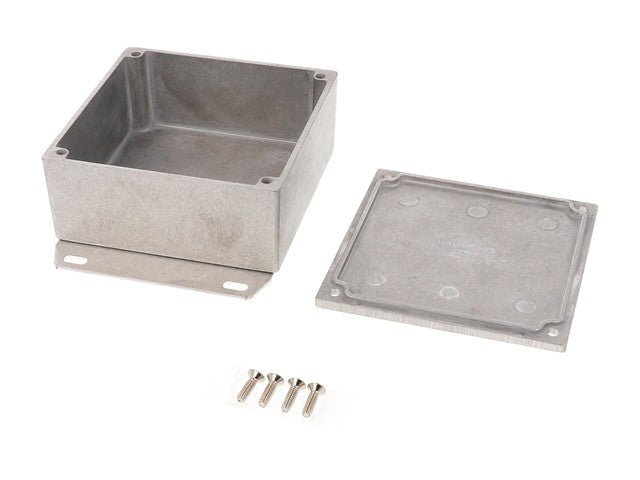

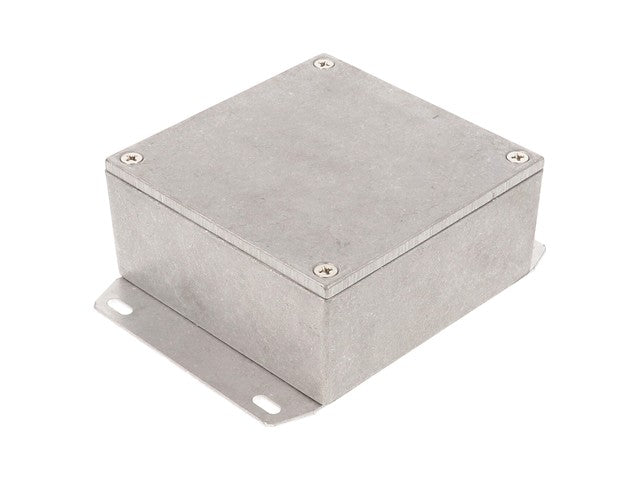

Enclosure Diecast Alumminium Unpaint 120.65 x 92 x 43.5 mm (With Lid) Bottom Flange IP54
Features
- Rugged, diecast aluminum alloy (tough - yet easy to machine), electronic instrument enclosure
- Lap joint construction provides protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Textured black version is coated with tough polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance appearance
- Includes screws threaded into factory-tapped holes. Screw type and quantity vary. See details below or in drawings
- Standard versions are designed to meet IP54
- Water-tight versions are designed to meet IP65 and include a gasket. Gasket is supplied loose inside the enclosure (not pre-installed)
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
Specifications
| Product Type |
Diecast Box Enclosure |
| Series |
1590 |
| Body Material |
Diecast Aluminium |
| External Dimensions |
120.65 x 92 x 43.5 mm (With Lid) |
| External Length |
120.65 mm |
| External Width |
92 mm |
| External Height |
43.5 mm (With Lid) |
| Internal Dimensions |
85.17 x 85.17 x 36.3 mm |
| Internal Length |
85.17 mm |
| Internal Width |
85.17 mm |
| Internal Height |
36.3 mm |
| Colour |
Natural |
| IP Rating |
IP54 |
| Lid Colour |
Natural |
