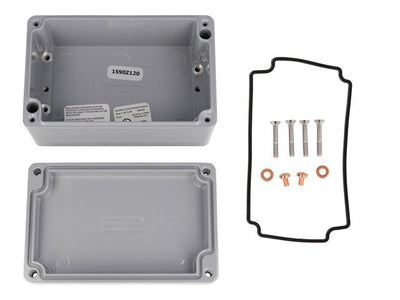

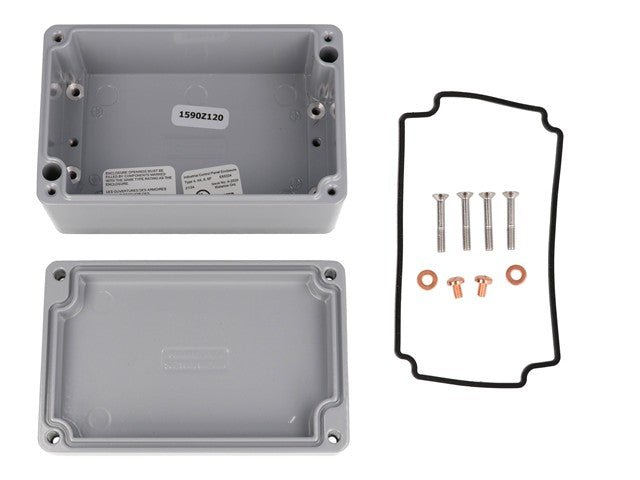

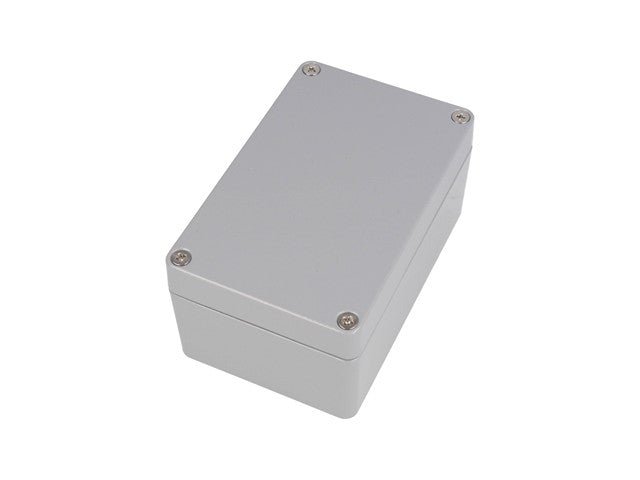

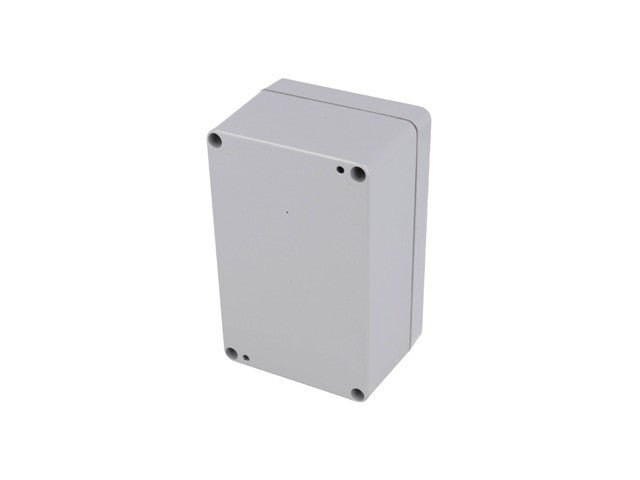

Diecast Aluminium Grey Enclosure 125.4 x 80.4 x 58.8 mm (With Lid) Watertight IP66 LH=15,6mm
Features
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
- Two piece “tongue & groove” construction with a replaceable one-piece silicone rubber gasket provides protection against access of dust and water. Gasket supplied loose inside the enclosure (not pre-installed)
- Ideal for repetitive opening and closing
- Four recessed stainless steel machine screws secure lid into tapped holes
- Easy to wall mount using “through box - blind hole” construction, outside of gasket protection
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
- North American Mark of Safety - cUL & UL listed. Certified to Type 4, 4X, 6, 6P
- Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth gray (RAL 7001)
- For non-metallic (glass reinforced polyester) versions of these enclosures
Specifications
| Product Type |
Diecast Box Enclosure |
| Series |
1590Z |
| Body Material |
Diecast Aluminium |
| External Dimensions |
125.4 x 80.4 x 58.8 mm (With Lid) |
| External Length |
125.4 mm |
| External Width |
80.4 mm |
| External Height |
58.8 mm (With Lid) |
| Internal Dimensions |
116.04 x 70.64 x 50.8 mm |
| Internal Length |
116.04 mm |
| Internal Width |
70.64 mm |
| Internal Height |
50.8 mm |
| Colour |
Grey |
| IP Rating |
IP68 |
| Lid Colour |
Grey |
| Protection Features |
Water-Tight |
