1590Z150

SKU: 1590Z150

BRAND: Hammond

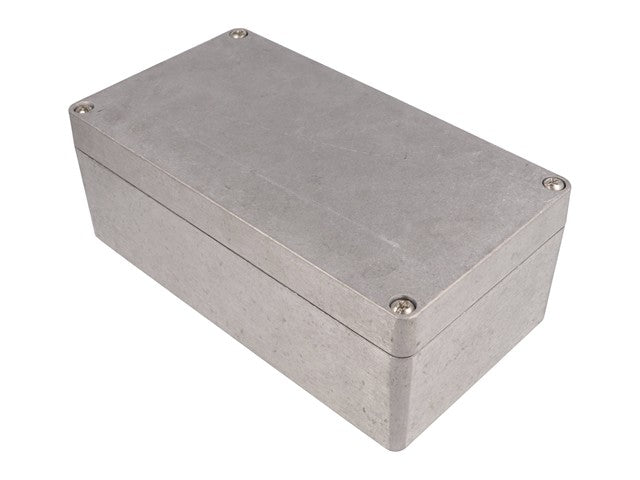

Watertight type Heavy Duty Enclosure • Diecast Aluminium Sealed • 221 x 120.5 x 80.5 mm (With Lid) • Unpainted

Features

  • Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure

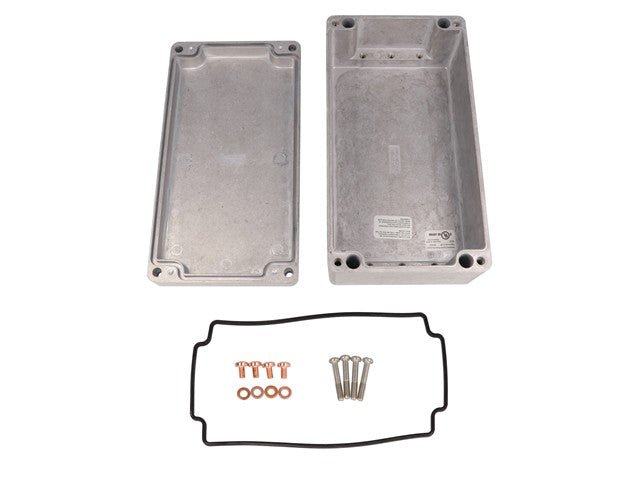

  • Two piece “tongue & groove” construction with a replaceable one-piece silicone rubber gasket provides protection against access of dust and water. Gasket supplied loose inside the enclosure (not pre-installed)
  • Ideal for repetitive opening and closing
  • Four recessed stainless steel machine screws secure lid into tapped holes

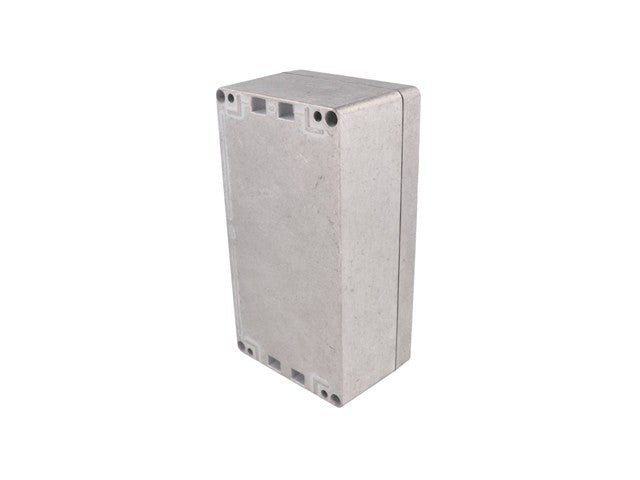

  • Easy to wall mount using “through box - blind hole” construction, outside of gasket protection
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
  • North American Mark of Safety - cUL & UL listed. Certified to Type 4, 4X, 6, 6P
  • Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth gray (RAL 7001)
  • For non-metallic (glass reinforced polyester) versions of these enclosures

Specifications

Product Type Diecast Box Enclosure
Series 1590Z
Body Material Diecast Aluminium
External Dimensions 221 x 120.5 x 80.5 mm (With Lid)
External Length 221 mm
External Width 120.5 mm
External Height 80.5 mm (With Lid)
Internal Dimensions 208.90 x 108.29 x 73 mm
Internal Length 208.90 mm
Internal Width 108.29 mm
Internal Height 73 mm
Colour Natural
IP Rating IP68
Lid Colour Natural
Protection Features Water-Tight
