SKU: 1590Z160

BRAND: Hammond

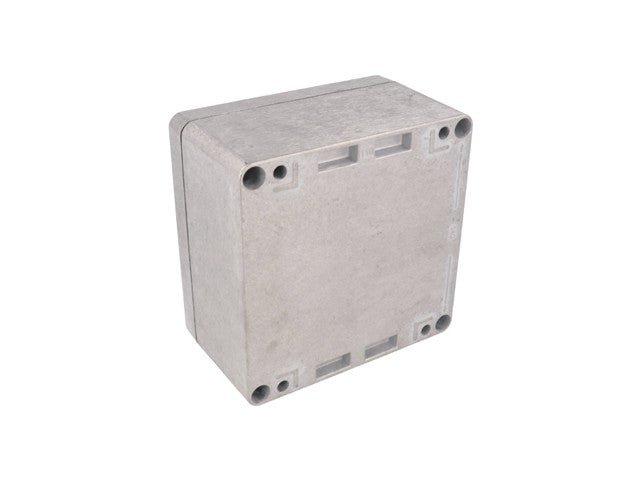

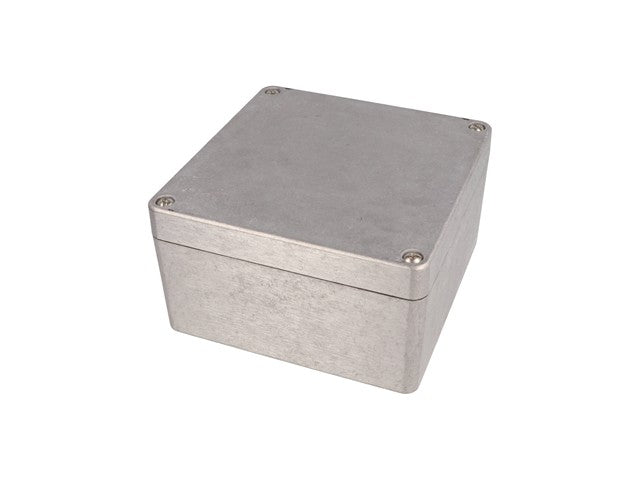

Watertight type Heavy Duty Enclosure • Diecast Aluminium Sealed • 160 x 160 x 89.75 mm (With Lid) • Unpainted


  • Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure

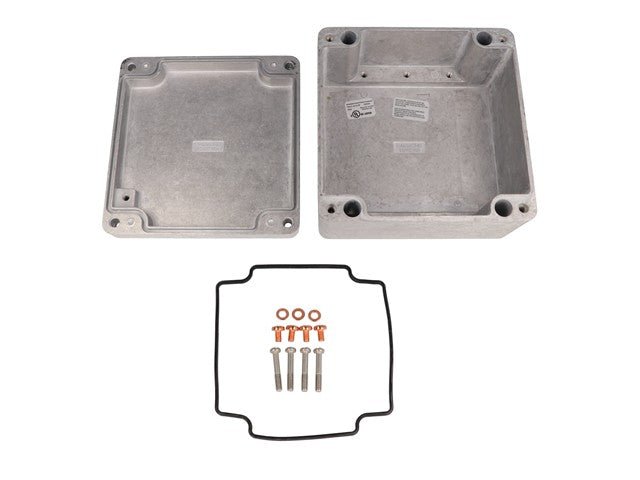

  • Two piece “tongue & groove” construction with a replaceable one-piece silicone rubber gasket provides protection against access of dust and water. Gasket supplied loose inside the enclosure (not pre-installed)
  • Ideal for repetitive opening and closing
  • Four recessed stainless steel machine screws secure lid into tapped holes
  • Easy to wall mount using “through box - blind hole” construction, outside of gasket protection
  • Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
  • North American Mark of Safety - cUL & UL listed. Certified to Type 4, 4X, 6, 6P
  • Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth gray (RAL 7001)
  • For non-metallic (glass reinforced polyester) versions of these enclosures


Product Type Diecast Box Enclosure
Series 1590Z
Body Material Diecast Aluminium
External Dimensions 160 x 160 x 89.75 mm (With Lid)
External Length 160 mm
External Width 160 mm
External Height 89.75 mm (With Lid)
Internal Dimensions 149.03 x 149.01 x 81.7 mm
Internal Length 149.03 mm
Internal Width 149.01 mm
Internal Height 81.7 mm
Colour Natural
IP Rating IP68
Lid Colour Natural
Protection Features Water-Tight
