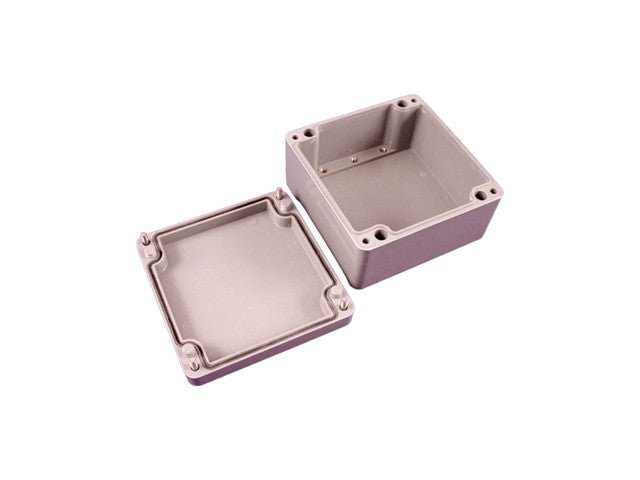

Enclosure Polysester 160X160X90MM Water-Tight
Enclosure Polysester Watertight
Feature(s)
- Molded from a grey, glass reinforced polyester. Smooth finish.
- Includes gasketed lid with two piece “tongue & groove” construction.
- Heavy duty, thick wall design.
- North American Mark of Safety - C UL & UL listed. Industrial Control Panel Enclosure Certified to NEMA 4, 4X standards (UL 508A) - File #E65324 and IP66 Rated
- Lid contains self captivated stainless steel screws.
- Gasket material is Mohogumi rubber (EDPM). Heat resistance 100-120 degree C, cold -40 degree C. Supplied loose inside the enclosure (not pre-installed).
- Easy wall mounting via “through box - blind hole” construction, outside of the gasket protection (see photos below).
- Internal mounting shelf & bonding / mounting nuts molded in (see “open” photos or drawings for more details).
- Optional 14 gauge, galvanized steel inner panels available (see drawings for details and part number listing below).
Specifications
- Size L x W x H : 160 mm x 160 mm x 90 mm
- Shipping Weight : 2.79 lbs (1.27 kg)
- UNSPSC : 39121301
- UPC : 62398099854
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : Fiberglass Polyester
- Color : Gray
- Flame Rating : UL94 V-0
- IP Rating : IP66
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : Thick wall, water-tight
- NEMA Rating : 1, 4, 4X, 12 & 13
Downloads
Additional Information
| Device |
Enclosure |
| Type |
Polysester | Watertight |
Discover the 1590ZGRP161 watertight enclosure, expertly crafted from reinforced fiberglass polyester for unmatched durability. With an IP66 rating and NEMA 4, 4X certification, it ensures superior protection for industrial control panels. Easy to mount and designed for extreme temperatures, this enclosure is perfect for safeguarding your valuable equipment in any environment.
