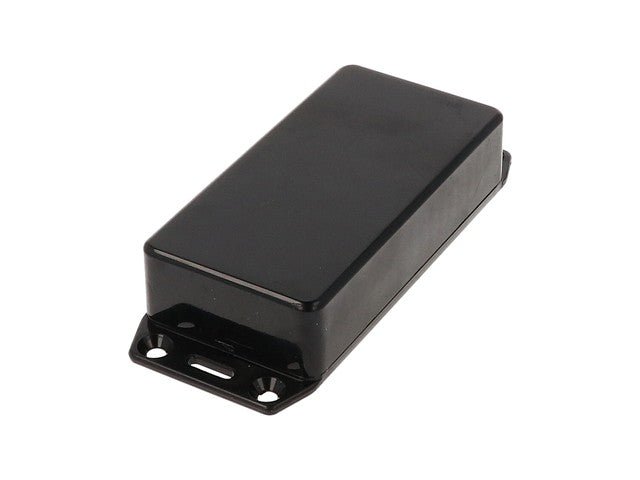

ABS Enclosure 100X50X25MM Flange Lid Black
ABS Enclosure Flange Lid Black
Feature(s)

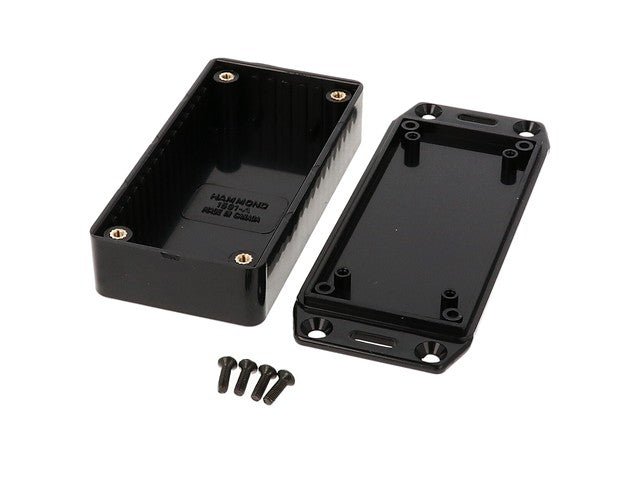

- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Economy versions are molded from general purpose (not flame-retardant) plastic.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
- Replacement screws available in packs of 100; 1591MS100 (nickel plated) or 1591MS100BK (black)
Alternatives
- If EMI/ RFI Shielding is required, try series 1591R.
- If card guides are not required or horizontal mounting of printed circuit boards is preferred, try series 1591XX.
- For transparent polycarbonate versions, try series 1591T.
Specifications

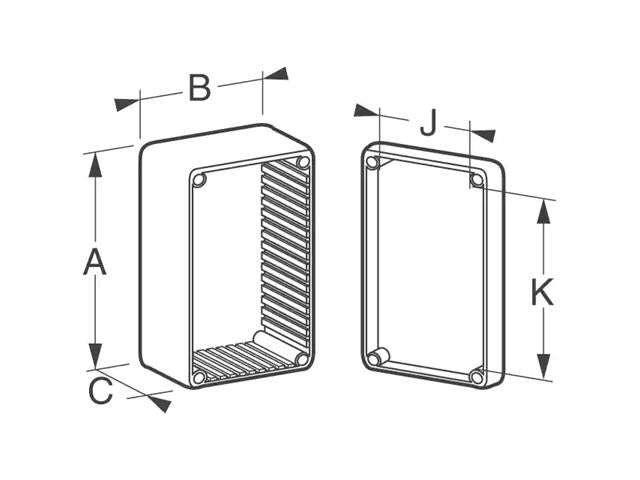

- Size L x W x H : 99 mm x 51 mm x 20 mm
- Shipping Weight : 0.12 lbs (0.05 kg)
- UNSPSC : 39121301
- UPC : 62398019671
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : ABS Plastic
- Color : Trans. Black
- Flame Rating : UL94 V-0
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : general purpose, flanged
Downloads
Additional Information
| Device |
Enclosure |
| Type |
ABS | Flange | Lid | Black |
| Base Colour |
Black |
Discover the 1591AFLBK ABS Enclosure, expertly designed for vertical mounting of printed circuit boards. With IP54 protection against dust and moisture, this durable, flame-retardant enclosure ensures your components stay safe and secure. Ideal for easy access and assembly, it’s the perfect choice for reliable electronic projects.
