1591ATBU - Plastic Enclosures - 623980533100

1591ATBU

Name: 1591ATBU - Communica [Part No: 1591ATBU]
Brand: Hammond
SKU: 1591ATBU
Price: 135 ZAR
Availability: InStock

SKU: 1591ATBU

BRAND: Hammond

R 155.25_{(inc VAT)}
R 135.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP54 Polycarbonate

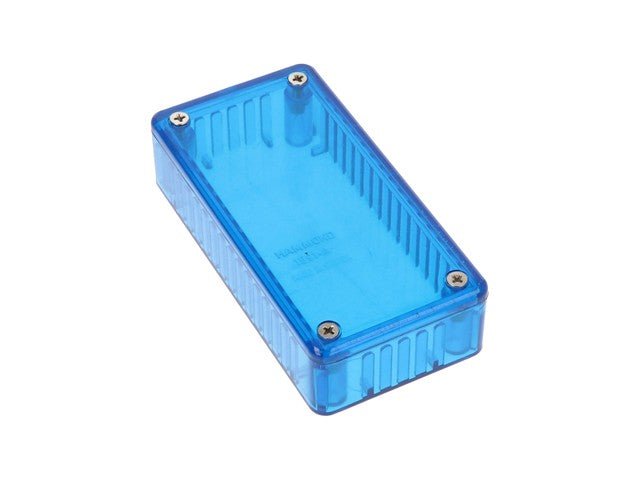

Polycarb Enclosure 100X50X21MM Ice Blue

Polycarb Enclosure Ice Blue

Feature(s)

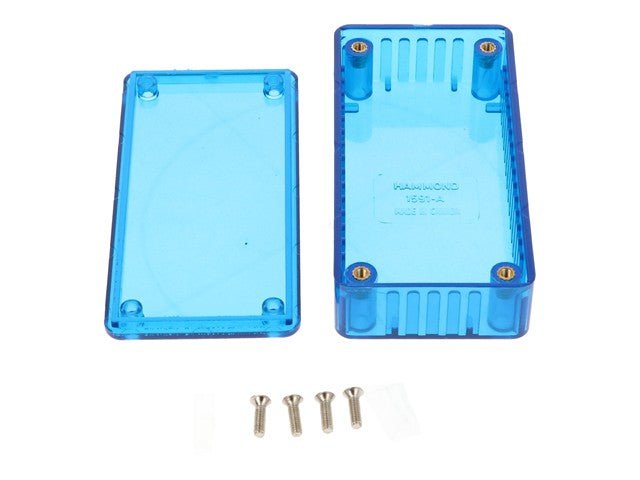

Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
Integral card guides accept 1.5 mm (0.062”) P.C. cards.
Lap joint construction provides protection against access of dust and splashing water.
Designed to meet IP54.
Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
Economy versions are molded from general purpose (not flame-retardant) plastic.
On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
Economy versions are assembled with self tapping screws into fully plastic posts.
Black enclosures include black screws, while all others include standard nickel finish screws.
Replacement screws available in packs of 100; 1591MS100 (nickel plated) or 1591MS100BK (black)

Downloads

Datasheet - 1591ATBU

Additional Information

Device	Enclosure
Type	Polycarb \| Ice \| Blue
Body Material	Polycarb
Dimensions	100x50x21mm
Base Colour	Ice Blue

Discover the 1591ATBU Polycarb Enclosure, designed for vertical mounting of PCBs with molded card guides. Its durable ice blue construction ensures protection against dust and splashes (IP54 rated), while the flame-retardant ABS material offers safety and reliability. Perfect for easy assembly and disassembly, this enclosure is ideal for your electronic projects.
