ABS Enclosure 85 MM X 56 MM X 39 MM Grey With Flanged Lid
ABS Grey with Flanged Lid Enclosure
Feature(s)

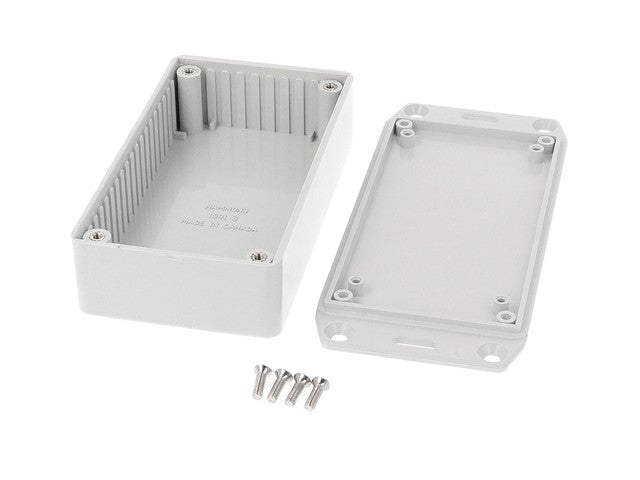

- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Economy versions are molded from general purpose (not flame-retardant) plastic.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
Specifications
- Size L x W x H : 3.35 in x 2.2 in x 1.54 in (85 mm x 56 mm x 39 mm)
- Shipping Weight : 0.15 lbs (0.07 kg)
- UNSPSC : 39121301
- UPC : 623980196916
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : ABS Plastic
- Color : Light Gray
- Flame Rating : UL94 V-0
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
Downloads
Additional Information
| Device |
Enclosure |
| Type |
ABS | Grey | Flanged Lid |
| Body Material |
Enclosure |
Discover the 1591BFLGY ABS Enclosure, designed for durability and versatility. Perfect for mounting printed circuit boards, this grey enclosure features molded card guides and IP54 protection against dust and splashes. Crafted from flame-retardant ABS, it ensures safety and reliability for your electronic projects. Upgrade your setup with this robust, easy-to-assemble enclosure today!
