1591DGY

SKU: 1591DGY

BRAND: Hammond


Multipurpose Enclosure • ABS Plastic • 150 x 80 x 50 mm (With Lid) • Grey

Features

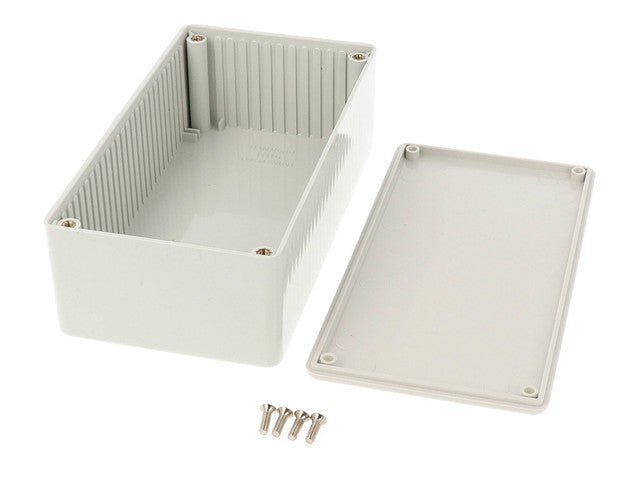

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right)
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
  • Economy versions are molded from general purpose (not flame-retardant) plastic

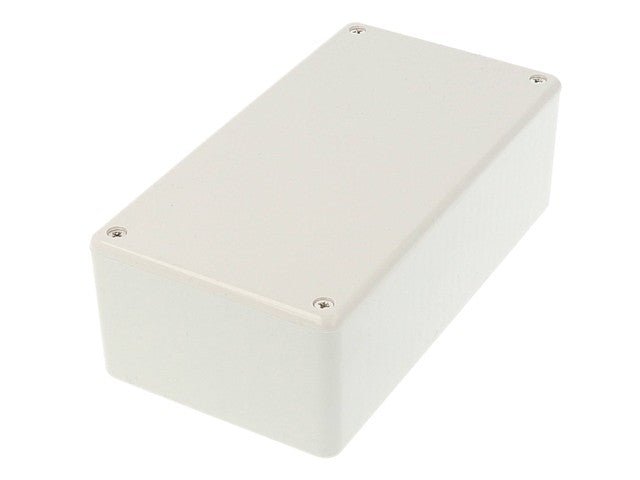

  • On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
  • Economy versions are assembled with self tapping screws into fully plastic posts
  • Black enclosures include black screws, while all others include standard nickel finish screws

Specifications

Product Type General Purpose Project Box
Series 1591
Body Material ABS Plastic
External Dimensions 150 x 80 x 50 mm (With Lid)
External Length 150 mm
External Width 80 mm
External Height 50 mm (With Lid)
Internal Dimensions 143.61 x 73.61 x 46.1 mm
Internal Length 143.61 mm
Internal Width 73.61 mm
Internal Height 46.1 mm
Colour Grey
IP Rating IP54
Lid Colour Grey
Flame Rating UL94 V-0
Protection Features Flame Retardant
