1591EFLGY

SKU: 1591EFLGY

BRAND: Hammond

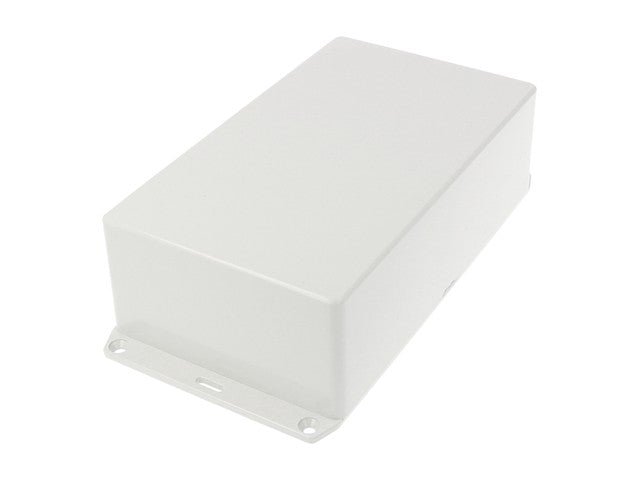

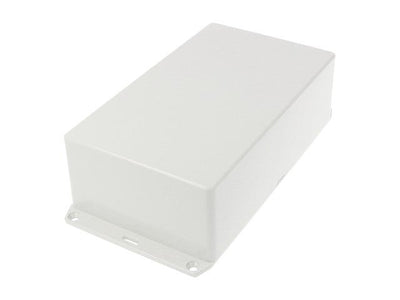

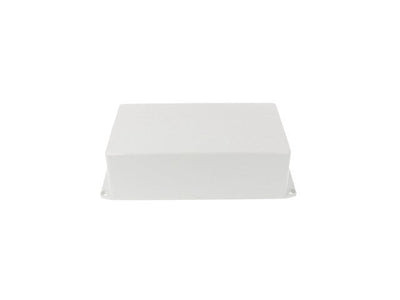

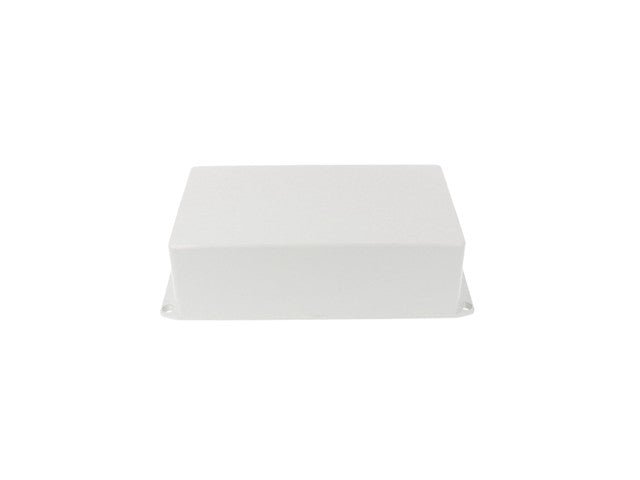

ABS Enclosure with Flanged Lid 215.4 x 110 x 60.8 mm (With Lid) In Grey Colour

Features

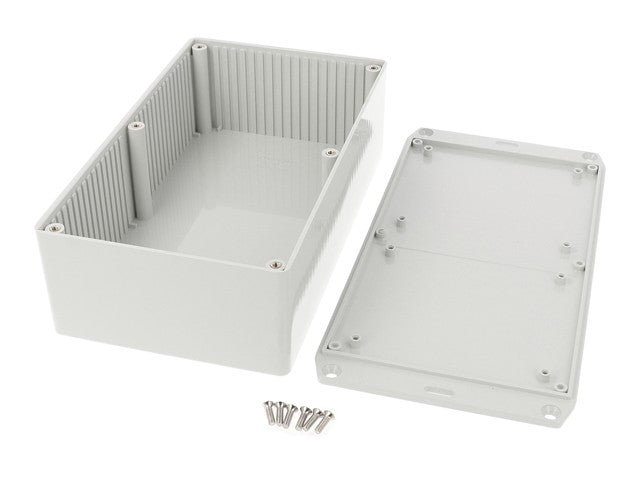

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right)
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
  • Economy versions are molded from general purpose (not flame-retardant) plastic
  • On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
  • Economy versions are assembled with self tapping screws into fully plastic posts
  • Black enclosures include black screws, while all others include standard nickel finish screws

Specifications

Product Type General Purpose Flanged Enclosure
Series 1591
Body Material ABS Plastic
External Dimensions 215.4 x 110 x 60.8 mm (With Lid)
External Length 215.4 mm
External Width 110 mm
External Height 60.8 mm (With Lid)
Internal Dimensions 183.52 x 103.53 x 56.6 mm
Internal Length 183.52 mm
Internal Width 103.53 mm
Internal Height 56.6 mm
Colour Grey
IP Rating IP54
Lid Colour Grey
Flame Rating UL94 V-0
Protection Features Flame Retardant
