1591ETCL

SKU: 1591ETCL

BRAND: Hammond

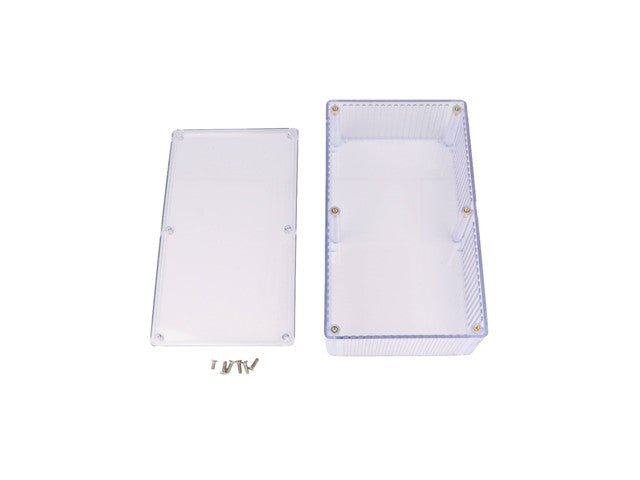

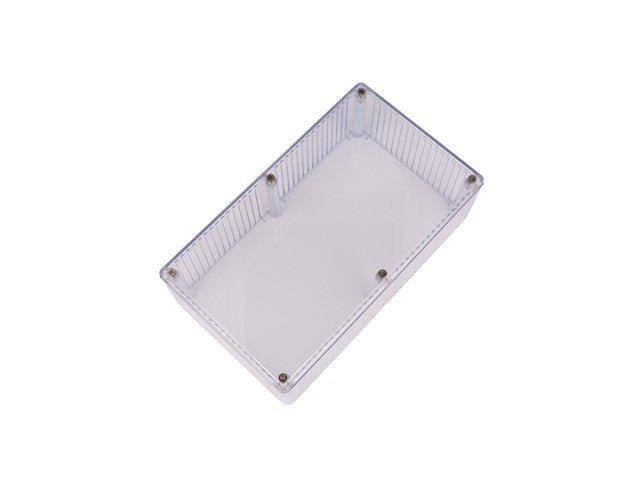

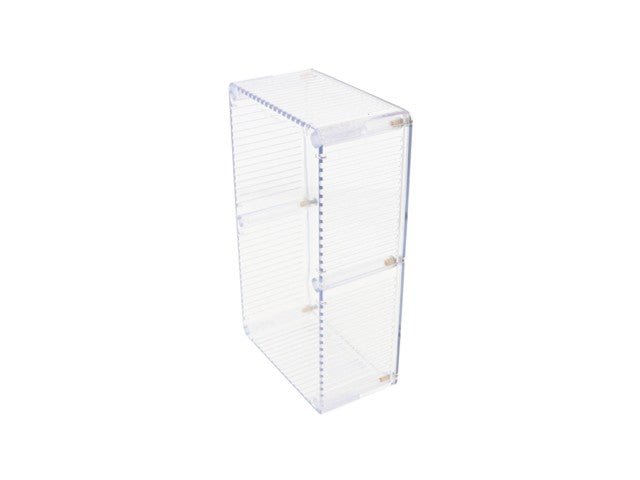

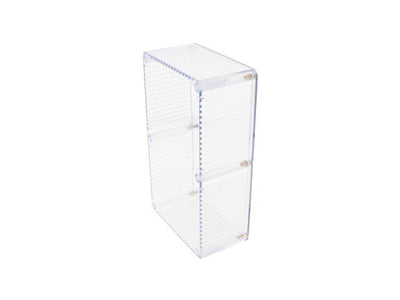

Polycarb Enclosure 190 x 110 x 60.6 mm (With Lid) Clear

Features

  • Ideally suited for mounting printed circuit boards
  • Perfect for applications where parts, sensors or indicators need to be visible
  • Ice Blue version is almost totally transparent to blue, white and near white LEDs, readouts & displays
  • Crystal Clear version is almost totally transparent
  • IR Red version is almost totally transparent to infrared devices
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Molded from flame retardant, easy to machine, translucent polycarbonate (material carries a UL flammability rating of 94V-0)
  • Lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings

Specifications

Product Type Polycarb Enclosure
Series 1591T
Body Material Polycarbonate
External Dimensions 190 x 110 x 60.6 mm (With Lid)
External Length 190 mm
External Width 110 mm
External Height 60.6 mm (With Lid)
Internal Dimensions 183.05 x 103.05 x 56.6 mm
Internal Length 183.05 mm
Internal Width 103.05 mm
Internal Height 56.6 mm
Colour Clear
IP Rating IP54
Lid Colour Clear
Flame Rating UL94 V-0
