Polycarb Enclosure 191X110X61MM IR Red
Polycarb Enclosure
Feature(s)

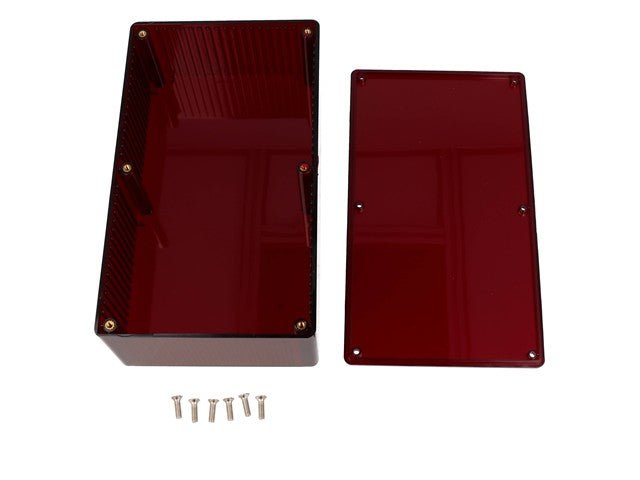

- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Economy versions are molded from general purpose (not flame-retardant) plastic.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
Specifications
- Size L x W x H : 7.5 in x 4.35 in x 2.39 in (191 mm x 110 mm x 61 mm)
- Shipping Weight : 0.54 lbs (0.24 kg)
- UNSPSC : 39121301
- UPC : 623980533421
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : Polycarbonate
- Color : Trans. Red
- Flame Rating : UL94 V-0
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : project box, general purpose
Downloads
Additional Information
| Device |
Enclosure |
| Type |
Polycarb |
Discover the 1591ETRD Polycarb Enclosure, expertly designed for secure vertical mounting of printed circuit boards. With IP54 protection against dust and splashes, this durable, flame-retardant enclosure ensures reliable performance. Ideal for repetitive assembly, it features molded card guides for easy installation. Elevate your project with this versatile and robust enclosure today!
