BRAND: Hammond

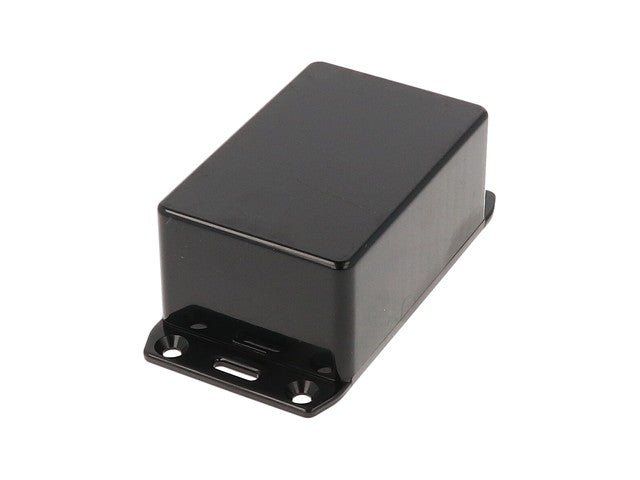

ABS Enclosure 85x56x41mm Black Flanged Lid Flame Retardent

ABS Enclosure Black Flanged

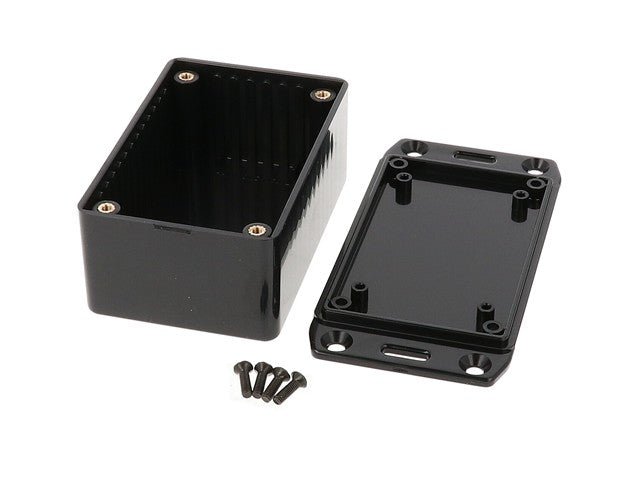

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Designed to meet IP54.
  • Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
  • Economy versions are molded from general purpose (not flame-retardant) plastic.
  • On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
  • Economy versions are assembled with self tapping screws into fully plastic posts.
  • Black enclosures include black screws, while all others include standard nickel finish screws.
  • Replacement screws available in packs of 100; 1591MS100 (nickel plated) or 1591MS100BK (black)


  • Size L x W x H : 84 mm x 56 mm x 36 mm
  • Shipping Weight : 0.15 lbs (0.07 kg)
  • UNSPSC : 39121301
  • UPC : 62398019689
  • REACH Compliant : Yes
  • RoHS Compliant : Yes
  • Material : ABS Plastic
  • Color : Black
  • Flame Rating : UL94 V-0
  • IP Rating : IP54
  • Packaging : shrink wrap
  • Product Category : Enclosures
  • Type : general purpose, flanged


Additional Information

Device Enclosure
Type ABS | Black | Flanged | Flame Retardent
