BRAND: Hammond

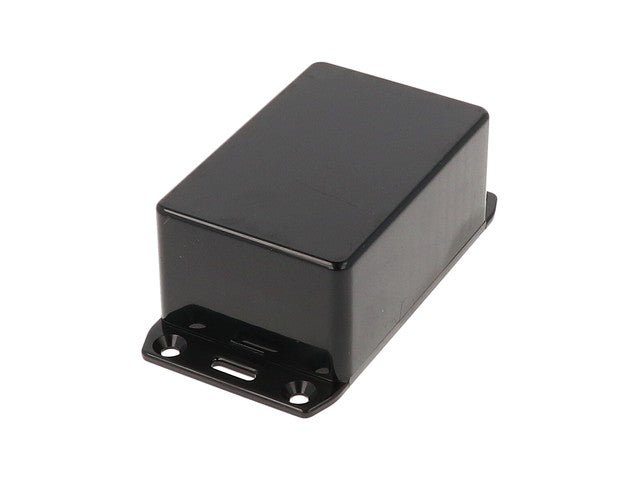

ABS Plastic 110.08 x 56 x 39.1 mm (With Lid) Flanged Lid Black IP54

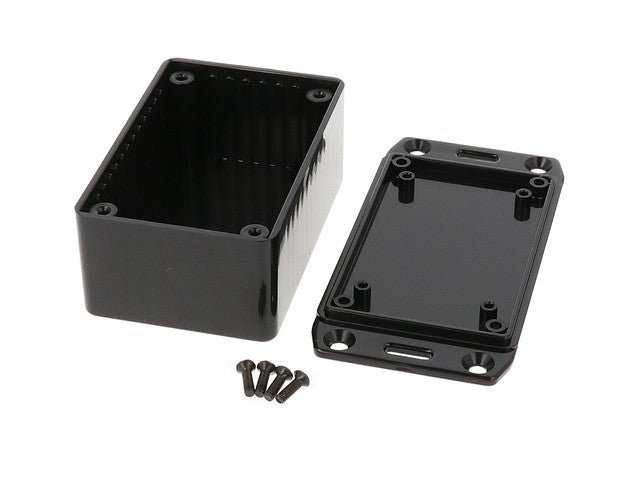

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right)
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
  • Economy versions are molded from general purpose (not flame-retardant) plastic

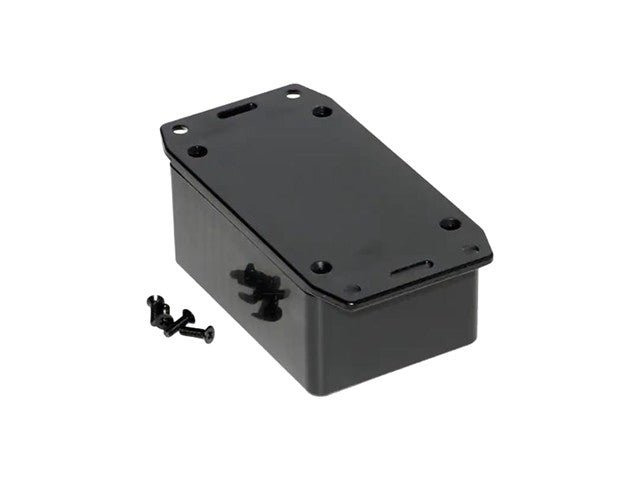

  • On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
  • Economy versions are assembled with self tapping screws into fully plastic posts
  • Black enclosures include black screws, while all others include standard nickel finish screws


Product Type General Purpose Flanged Enclosure
Series 1591
Body Material ABS Plastic
External Dimensions 110.08 x 56 x 39.1 mm (With Lid)
External Length 110.08 mm
External Width 56 mm
External Height 39.1 mm (With Lid)
Internal Dimensions 78.71 x 51.71 x 34.9 mm
Internal Length 78.71 mm
Internal Width 51.71 mm
Internal Height 34.9 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94-HB
Protection Features Flame Retardant
