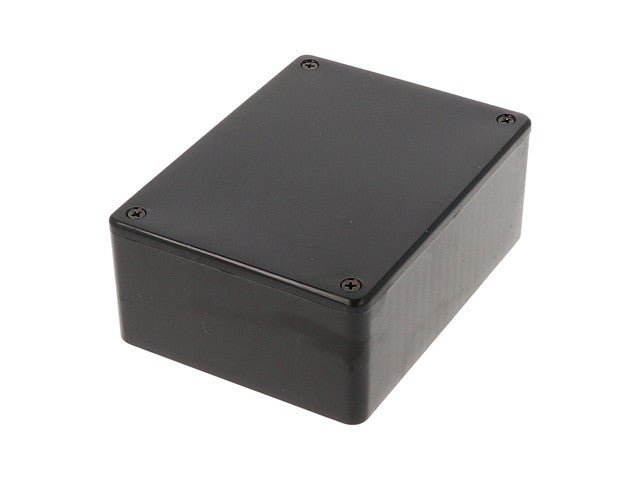

ABS Enclosure 110X82X40 Black
ABS Enclosure Black
Feature(s)

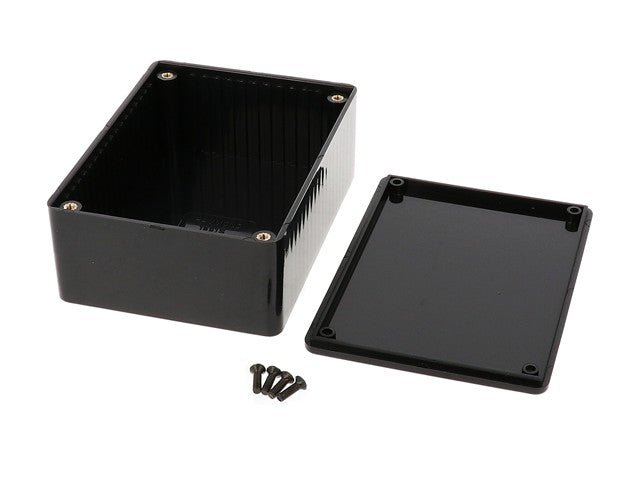

- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right).
- Integral card guides accept 1.5 mm (0.062”) P.C. cards.
- Lap joint construction provides protection against access of dust and splashing water.
- Designed to meet IP54.
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0.
- Economy versions are molded from general purpose (not flame-retardant) plastic.
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
- Black enclosures include black screws, while all others include standard nickel finish screws.
- Replacement screws available in packs of 100; 1591MS100 (nickel plated) or 1591MS100BK (black)
Specifications
- Size L x W x H : 109 mm x 81 mm x 41 mm)
- Shipping Weight : 0.23 lbs (0.10 kg)
- UNSPSC : 39121301
- UPC : 62398079384
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : ABS Plastic
- Color : Black
- Flame Rating : UL94 V-0
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : project box, general purpose
Downloads
Additional Information
| Device |
Enclosure |
| Type |
ABS | Black |
Discover the versatility of the 1591SBK ABS Enclosure, designed for secure vertical mounting of PCBs. This durable black enclosure meets IP54 standards, ensuring protection against dust and splashes. Crafted from flame-retardant ABS plastic, it's perfect for any project needing reliable, easy assembly and disassembly. Elevate your electronic designs with this essential enclosure today!
